SFP28
25G SFP28-DWDM-Tunable

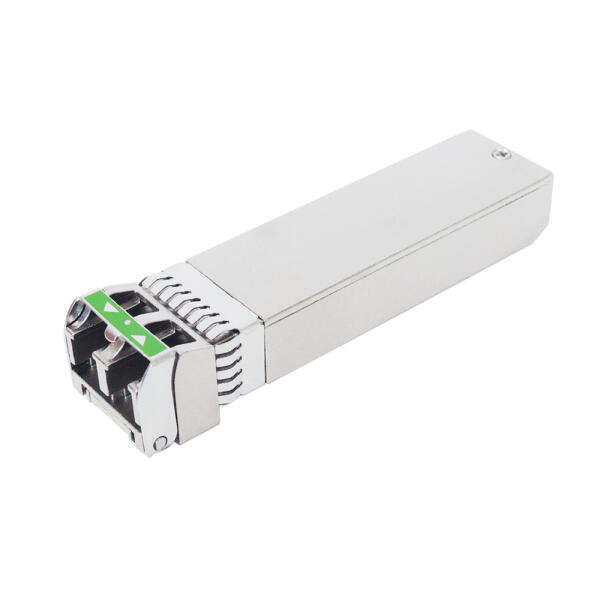

25G SFP28 DWDM Tunable Transceiver
Hot Pluggable, Duplex LC, 50GHz DWDM MZM, SMF 10KM
| お問い合わせカート | Specification | Applications | Features | Download |
|---|---|---|---|---|
| Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheetFSPP-H7-DTU-10DQ25G50GHz DWDM MZMDuplex LCSM 10km0~70°CSFP28-25G-DWDM-Tunable 10kmFSPP-H7-DTU-10DQi25G50GHz DWDM MZMDuplex LCSM 10km-40~85°CSFP28-25G-DWDM-Tunable 10km,I-Temp | 25GBASE-LR Ethernet @25.78GCPRI Option #10 @24.33GeCPRI 5G Mobile NetworksDWDM Networks | Compatible with IEEE802.3cc 25GBASE-LRCompliant with CPRI option10Compliant with SFF-8402 SFP28 MSAData Rate up to 25.78GbpsBuilt-in CDR on both Transmitter and ReceiverHot Pluggable50GHz ITU Grid channel spacing with integrated wavelength locker and auto-tuning technologyMonolithically integrated full C-band DWDM tunable transmitterAPD receiverDuplex LC connector2-wire interface for management and diagnostic monitor compliant with SFF-8472Single +3.3V power supplyLink distance 10km over SM fiberMaximum power consumption 3WRoHS Compliant |
