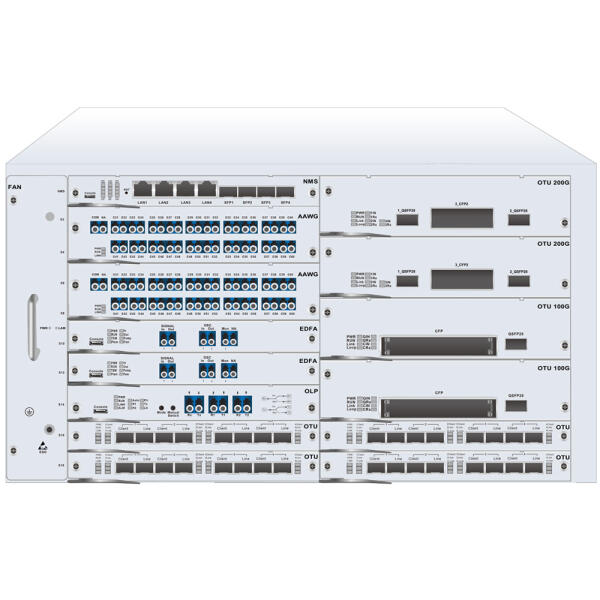

F520 OTN DWDM System
F520 1U 4-Slot Chassis
F520 1U 4-Slot Chassis
| お問い合わせカート | Specification | Features | Download |
|---|---|---|---|
| ParameterTechnical indicators Size (mm)1U 19” : 482.5 (W) x 350 (D) x 44.5 (H)Slot1-Slot for Management, 3-Slot for ServicePower SupplyDual Power Supply 100~240VAC, -48VDC optionalPower Consumption<120WFAN4*40mm FANEnviornment │ Operating Temperature-10 ~ 60 °CEnviornment │ Storage Temperature-40 ~ 85 °CEnviornment │ Relative Humidity5 ~ 95 RH% | 1U 19” Rack Compact size1 Slot for Management3 Slots for Service module cardsBulti-in Management unitModular design for Power and FAN moduleHot Pluggable, Easy Replacement1+1 Balanced and Redundancy Power supply,AC / DC optionalSupport SNMP-based Network managementSupport CLI, WEB, Telnet and NMSVisual Graphic information interfaceSupport Entire network topology, elements auto-discovery and generationSupport Voice alarm, e-mail alerts, SMS alerts, Real-time online remote monitoring |  | |
| ParameterTechnical indicators Size (mm)2U 19” : 482.5(W) x 350(D) x 89(H)Slot1-Slot for Management, 7-Slot for ServicePower SupplyDual Power Supply 100~240VAC, -48VDC optionalPower Consumption<200WFAN3*80mm FANEnviornment │ Operating Temperature-10 ~ 60 °CEnviornment │ Storage Temperature-40 ~ 85 °CEnviornment │ Relative Humidity5 ~ 95 RH% | 2U 19” Rack Compact size1 Slot for Management7 Slots for Service module cardsModular design for Power and FAN moduleHot Pluggable, Easy Replacement1+1 Balanced and Redundancy Power supply,AC / DC optionalSupport SNMP-based Network managementSupport CLI, WEB, Telnet and NMSVisual Graphic information interfaceSupport Entire network topology, elements auto-discovery and generationSupport Voice alarm, e-mail alerts, SMS alerts, Real-time online remote monitoring | | |
| ParameterTechnical indicators Size (mm)5U 19” : 482.5(W) x 350(D) x 222.5(H)Slot1-Slot for Management, 19-Slot for ServicePower SupplyDual Power Supply 100~240VAC, -48VDC optionalPower Consumption<500WFAN6*80mm FANEnviornment │ Operating Temperature-10 ~ 60 °CEnviornment │ Storage Temperature-40 ~ 85 °CEnviornment │ Relative Humidity5 ~ 95 RH% | 5U 19” Rack Compact size1 Slot for Management19 Slots for Service module cardsModular design for Power and FAN moduleHot Pluggable, Easy Replacement1+1 Balanced and Redundancy Power supply,AC / DC optionalSupport SNMP-based Network managementSupport CLI, WEB, Telnet and NMSVisual Graphic information interfaceSupport Entire network topology, elements auto-discovery and generationSupport Voice alarm, e-mail alerts, SMS alerts, Real-time online remote monitoring 📣 Unlock Short Distance Transmission: How to Maximize Optical Network Solution!🌟FICER F520 OTN DWDM Transmission Platform is designed to tackle your fiber optic network challenges, offering features that ensure ease of use, installation, deployment, and management.In addition to maintaining system stability, the primary function of the FICER F520 is to achieve ultra-long-distance transmission of up to 1500km using existing fiber resources, without the need to deploy new cables. It is ideal for bandwidth expansion within or between metropolitan areas, long-distance backbone transmission, and massive data capacity transmission.Moreover, the FICER F520 equipment allows for the flexible construction of cost-effective optical transmission networks, making it an ideal choice for data centres, telecommunication providers, carriers, service providers, and enterprise networks.More F520 OTN DWDM Transmission Platform | | |
| Advanced Optical Service Channel (OSC) protocolSecurityAlarm ManagementMultiple management modeGraphical User Interface (GUI) managementMultiple front panel ports for management accessExtensive management features | | ||
| Metro CWDM / DWDM distance extensionLong-Haul transmission systemWavelength ConversionSignal RepeatingMedia Conversion | 3R signal regeneration (Reshaping, Retiming, Reamplify)Support multiple services and Wide data rate : 1.25Gbps~11.3GbpsHot SwapReal-Time DDMSupport ALS (Automatic Laser Shutdown)Support LFP (Link Forward Pass though)Ultra-Low latencyLow power consumptionSupport all F520 Chassis | | |
| Metro CWDM / DWDM distance extensionLong-Haul transmission systemWavelength ConversionSignal RepeatingMedia Conversion | 1R signal regeneration (Reamplify)Support multiple services and Wide data rate : 1.25Gbps~28GbpsHot SwapReal-Time DDMSupport ALS (Automatic Laser Shutdown)Ultra-Low latencyLow power consumptionSupport all F520 Chassis | ||
| Metro DWDM distance extensionLong-Haul transmission systemSignal RepeatingMedia ConversionLambda Conversion | Client side: 1*100G QSFP28Line side: 1*100G CFPHot SwapSupport Line-side GFEC (G.709 RS-FEC), EFEC and SDFEC (depends on CFP-DCO module)Support port loopback testDispersion Tolerance up to 40000ps/nm (depends on CFP-DCO module)Support adjustable wavelength with CFP-DCO moduleSupport adjustable output power with CFP-DCO moduleSupport OSNR real-time monitoring with CFPDCO moduleSupport all F520 Chassis | | |
| Metro DWDM distance extensionLong-Haul transmission systemSignal RepeatingMedia ConversionLambda Conversion | Client side: 3*40/100G QSFP28Line side: 3*40/100G QSFP28Back-to-Back transparent transmissionHot SwapReal-Time DDMSupport ALS (Automatic Laser Shutdown)Support LFP (Link Forward Pass though)Low power consumptionSupport all F520 Chassis | | |
| Metro DWDM distance extensionLong-Haul transmission systemSignal RepeatingMedia ConversionLambda Conversion | Client side: 1*400G QSFP56-DDLine side: 1*400G CFP2Support Line-side GFEC (G.709 RS-FEC), EFEC and SDFEC (depends on CFP2-DCO module)Dispersion Tolerance up to 40000ps/nm (depends on CFP2-DCO module)Support adjustable wavelength with CFP2-DCO moduleSupport adjustable output power with CFP2-DCO moduleSupport OSNR real-time monitoring with CFP2-DCO moduleSupport port Loopback testHot SwapReal-Time DDMSupport ALS (Automatic Laser Shutdown)Support all F520 Chassis | ||
| Metro DWDM distance extensionLong Haul transmission systemSignal RepeatingMedia ConversionLambda Conversion | Client side: 1*40/100G QSFP28Line side: 4*10/25G QSFP28Back to Back transparent transmissionHot SwapReal Time DDMSupport ALS ( Automatic Laser Shutdown )Low power consumptionSupport all F520 Chassis | | |
| Metro DWDM distance extensionLong Haul transmission systemSignal RepeatingMedia ConversionLambda Conversion | Client side: 10*10G SFP+Line side: 1*100G QSFP28Support 10G and 100G EtherenetHot SwapReal-Time DDMSupport ALS (Automatic Laser Shutdown)Low power consumptionSupport all F520 Chassis | | |
| Metro DWDM distance extensionLong-Haul transmission systemSignal RepeatingMedia ConversionLambda Conversion | Client side: 2*100G QSFP28Line side: 1*100/200G CFP2Hot SwapSupport Line-side GFEC (G.709 RS-FEC), EFEC and SDFEC (depends on CFP-DCO module)Support port loopback testDispersion Tolerance up to 40000ps/nm (depends on CFP2-DCO module)Support adjustable wavelength with CFP2-DCO moduleSupport adjustable output power with CFP2-DCO moduleSupport OSNR real-time monitoring with CFP2-DCO moduleSupport all F520 Chassis | | |
| Metro DWDM distance extensionLong-Haul transmission systemSignal RepeatingMedia ConversionLambda Conversion | Client side: 4*100G QSFP28Line side: 1*100/200/400G CFP2Support Line-side GFEC (G.709 RS-FEC), EFEC and SDFEC (depends on CFP2-DCO module)Support Client-side 100GE RS(528,514) FECDispersion Tolerance up to 40000ps/nm (depends on CFP2-DCO module)Support adjustable wavelength with CFP2-DCO moduleSupport adjustable output power with CFP2-DCO moduleSupport OSNR real-time monitoring with CFP2-DCO moduleSupport port Loopback testHot SwapReal-Time DDMSupport ALS (Automatic Laser Shutdown)Support all F520 Chassis | | |
| Metro DWDM distance extensionLong-Haul transmission systemSignal RepeatingMedia ConversionLambda Conversion | Client side: 4*100G QSFP28Line side: 1*400G QSFP56-DDSupport Line-side Multi-Rate 100/200/300/400G (depends on QSFP56-DD DCO module)Support Line-side oFECSupport Client-side 100GE RS(528,514) FECDispersion Tolerance up to 20000ps/nm @400G (depends on QSFP56-DD DCO module)Support adjustable wavelength with QSFP56-DD DCO moduleSupport adjustable output power with QSFP56-DD DCO moduleSupport OSNR real-time monitoring with QSFP56-DD DCO modulSupport port Loopback testHot SwapReal-Time DDMSupport ALS (Automatic Laser Shutdown)Support all F520 Chassis | | |
| Metro DWDM distance extensionSingle wavelength distance extensionCATV network systemLong-Haul transmission system | Low noise figure : typical 5dBGain Flattening Filters ( GFF ) assure flat Gain ( <1dB variance ) over the entire amplified bandMultiple operating modes : AGC, APC, ACCHigh performance transient response control to ensure Power, Gain stable without affecting existing signalSupport customized saturated Output Power range 13 ~ 24dBmSupport customized Gain variety range 8 ~ 40dBSupport Red / Blue port for single-fiber DWDM transmission systemSupport Mid-Stage access for insertion of a DCM or OADM unit without it’s inherent loss.Optional OSC management channel for remote managementOwn monitoring port, real-time monitoring optical power and OSNRSupport SNMP, Web, Console managementSupport 4, 8, 20 slot chassis for different capacity requirement | |
