40G QSFP+
40G QSFP+ PSM4-IR
40G QSFP+ PSM4-IR

40G QSFP+ PSM4-IR

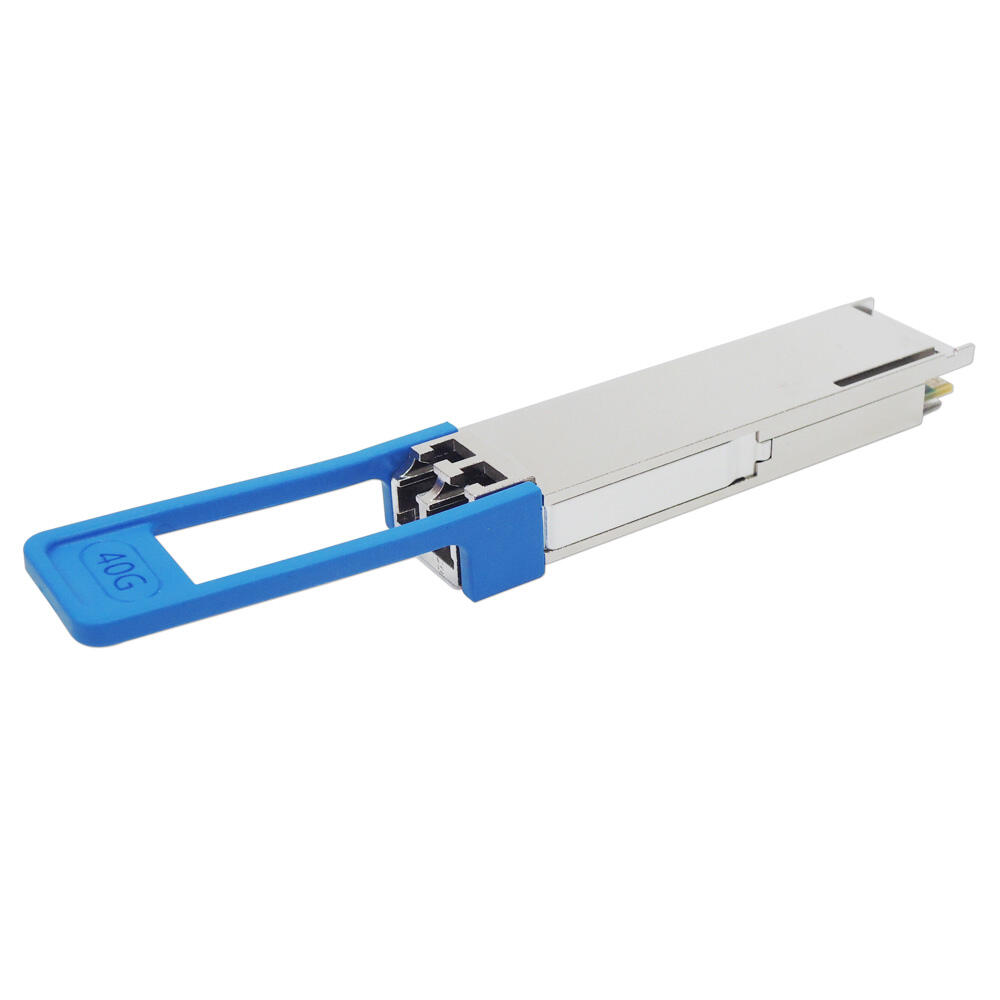

40G QSFP+ Parallel SM IR Transceiver
Hot Pluggable, MPO / MTP, 1310nm DFB, Single Mode, 2KM


Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
FQFP-I9-S13-02D40G1310nmMPO/MTPSM 2km0~70°CQSFP+ 40G-PSM4-IR

  • 40Gb Ethernet
  • OTN OTU3 @43.01G, OTU3e2 @44.58G
  • Breakout to 4 x 10GBASE-LR Ethernet
  • InfiniBand DDR, QDR, SDR interconnects
  • Data Center & Storage
  • Datacom / Telecom Switch & Router

  • Compatible with IEEE802.3ba 40GBASE-LR4
  • Compliant to SFF-8436 QSFP+ MSA
  • Supports QDR, DDR & SDR InfiniBand
  • 4 independent full-duplex channels
  • Up to 11.2Gbps data rate per channel
  • Hot Pluggable
  • 1310nm DFB array transmitter
  • MPO-12 receptacle connector
  • 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
  • Single 3.3V power supply
  • Link distance 2km over SM fiber
  • Power consumption < 2.5W
  • RoHS compliant
