PON SFP+
10G EPON

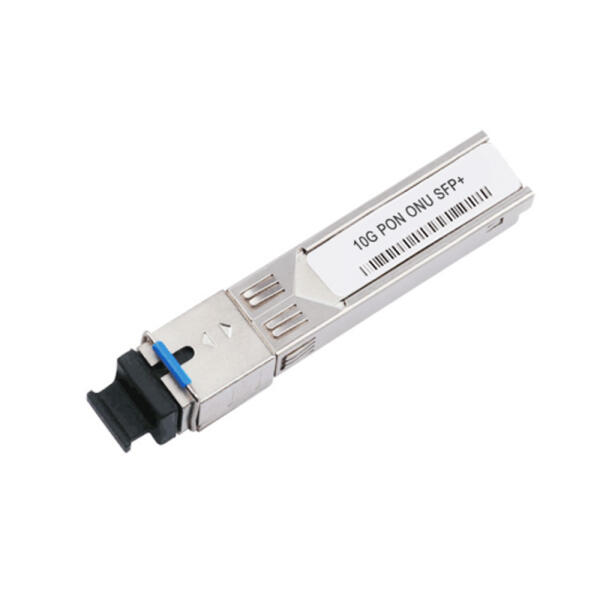

10G EPON ONU SFP+ Transceiver
Hot Pluggable, BiDi SC, Tx1270nm / Rx1577nm, Single-Fiber, 20KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSPP-H2-PE2-20P | 10G | Tx1270nm / Rx1577nm | BiDi SC | PON 20km | 0~70°C | SFP+ XG-PON OLT | |
| FSPP-H2-PE2-20Pi | 10G | Tx1270nm / Rx1577nm | BiDi SC | PON 20km | -40~85°C | SFP+ XG-PON OLT, I-Temp | |
- 10G EPON Application
- FTTx Application
- Compatible IEEE802.3av PR30 standard
- Compliant with SFP MSA
- Compliant with SFF8472 diagnostic monitoring interface
- Single fiber bi-directional data link with symmetric 10.3125Gbps Tx and 10.3125Gbps Rx
- Hot Pluggable
- 1270nm burst mode transmitter with DFB laser
- 1577nm continuous mode receiver with APD-TIA
- Simplex SC/UPC connector
- Support Transmitter state indication (Tx_SD) and Receiver state indication (Rx_SD)
- 2-wire interface for management and diagnostic monitor
- Single +3.3V power supply
- RoHS Compliant
