100G QSFP28
100G-QSFP28-PSM4/ePSM4

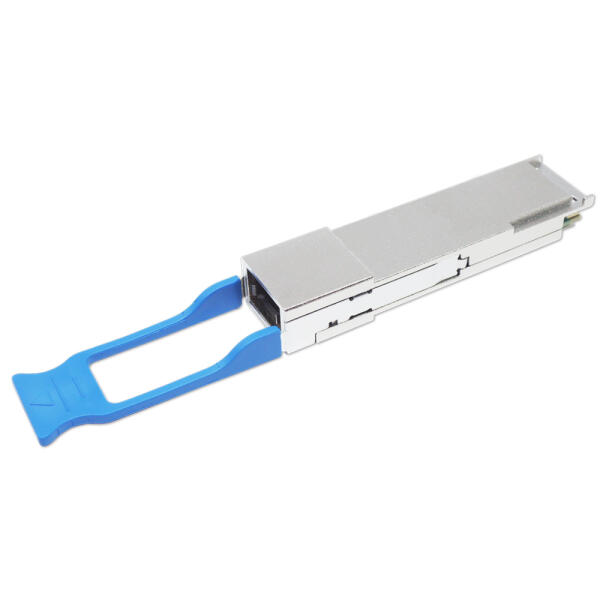

100G QSFP28 PSM4/ePSM4 Transceiver
Hot Pluggable, MPO / MTP, 1310nm DFB, Single Mode, 2KM~10KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQ28-K9-S13-02D | 100G | 1310nm | MPO/MTP | SM 2km | 0~70°C | QSFP28-100G-PSM4-Ethernet | |
- 100GBASE-LR4 Ethernet @103.1G
- Breakout to 4 x 25GBASE Ethernet 2km
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with SFF-8636 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- 4 independent full-duplex channels
- Data Rate 25.78125Gbps per Lane
- Built in quad Tx CDR and Rx CDR
- Hot Pluggable QSFP28 footprint
- 4CH 1310nm DFB array transmitter
- 4CH PIN array receiver
- MPO-12 / MTP-12 optical connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 2km over SM fiber
- Maximum power consumption 3.5W
- RoHS compliant
