40G QSFP+ Loopback

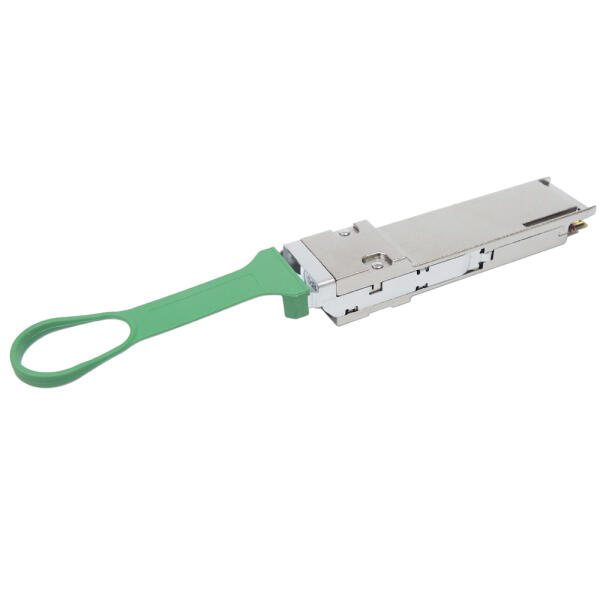

40G QSFP+ Electrical Passive Loopback
Hot Pluggable, 0~5dB Internal Attenuation, 0~3.5W Power Consumption
| Part Number | Data Rate | Internal Attenuation | Power Consumption | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|
| FQFP-IX-XLB-xx-xx | 40G | 0~5dB | 0~3.5W | -40~85°C | QSFP+ 40G-Loopback | |
- Board and System Level Testing
- System Test and Measurement
- Switch / Router Chamber Test
- Power Consumption Validation
- Compliant with SFF-8436 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- Electrical Data Rate up to 10.5Gbps per Lane
- Hot Pluggable QSFP+ footprint
- 2-wire interface for management
- Single 3.3V power supply
- Different Option for Internal Attenuation and Power Consumption
- RoHS compliant
