CWDM / DWDM Power Meter

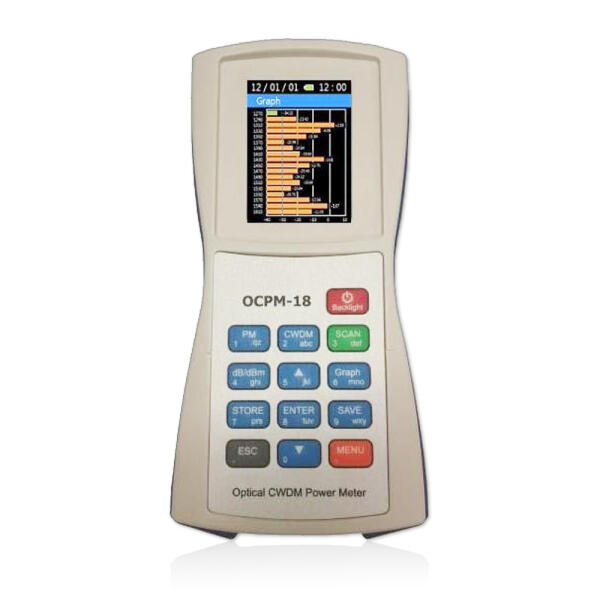

Optical CWDM Power Meter
Optical CWDM Power Meter
| お問い合わせカート | Specification | Product features | Download |
|---|---|---|---|
| ParameterTypical Wavelength Range1270 ~ 1610 nmNumber of Channels18Measuring Wavelength (nm)1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1570/1590/1610Wavelength resolution20nmDynamic range+ 10dBm to -40dBmAbsolute accuracy< ±0.5 dBPower resolution0.01 dBUnitsdBm / dBPower supplyRechargeable Lithium-Polymer BatteryOptical interfaceSC/PC (standard), FC, LC, ST availableGuaranteed time of Operating600 min (when fully charged)Operating Temperature0 ~ +50 ℃Dimension78 x 155 x 35 mmWeight250g | Applicable for wavelength optical network such as CWDM, LTE, WiBro, 3G/4G, FTTxA robust, shock-proof, splash-proof design for field operationLight weight for on-site measurementTypical 5-pin Charger and USB data cableQuick start operation, requiring no warm-up time and reducing testing time |  | |
| ParameterTypical Channel SpacingDWDM 100GHz (according to ITU-T)Number of Channels48 (ITU Channel 17 ~ 64)Channel Frequencies (THz)frequencies 196.4 ~ 191.7 (1526.43nm ~ 1563.86nm)Range of Display+ 10dBm to -40dBmAbsolute accuracy< ±1.0 dB @ -30dBmResolution0.01 dBMeasuring UnitsdBm / dBPower supplyRechargeable Lithium-Polymer BatteryOptical interfaceSC/PC (standard), FC, LC, ST availableGuaranteed time of Operating420 min (when fully charged)Operating Temperature-20 ~ +55 ℃Dimension78 x 155 x 35 mmWeight250g | Applicable for optical fiber DWDM networkA robust, shock-proof, splash-proof design for field operationFast response for full 48-channelsLight weight for on-site measurementTypical 5-pin Charger and USB data cableQuick start operation, requiring no warm-up time and reducing testing time | |
