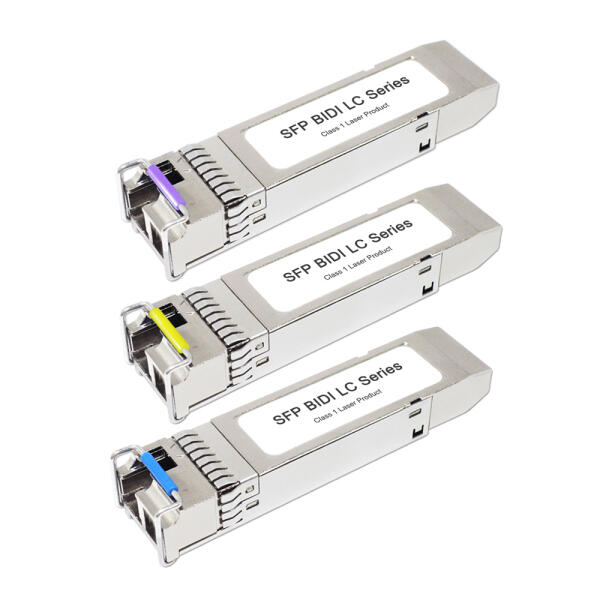

2.5G SFP-BIDI
2.5G STM-16/OC-48 BiDi Single-Fiber SFP Transceiver
Hot Pluggable, BiDi LC / SC, 1310nm / 1490nm / 1550nm, Single Mode, 20KM~80KM
| Inquiry | Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Download |
|---|---|---|---|---|---|---|---|---|
FSFP-E8-S35-20D | 2.5G | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | 0~70°C | SFP-OC48-BX20-U3, C-Temp |  | |
FSFP-E8-S35-20Di | 2.5G | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | -40~85°C | SFP-OC48-BX20-U3, I-Temp | | |
FSFP-E8-S53-20D | 2.5G | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | 0~70°C | SFP-OC48-BX20-D5, C-Temp | | |
FSFP-E8-S53-20Di | 2.5G | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | -40~85°C | SFP-OC48-BX20-D5, I-Temp | | |
FSFP-E8-S35-40D | 2.5G | Tx1310nm / Rx1550nm | BiDi LC | SM 40km | 0~70°C | SFP-OC48-BX40-U3, C-Temp | | |
FSFP-E8-S35-40Di | 2.5G | Tx1310nm / Rx1550nm | BiDi LC | SM 40km | -40~85°C | SFP-OC48-BX40-U3, I-Temp | | |
FSFP-E8-S53-40D | 2.5G | Tx1550nm / Rx1310nm | BiDi LC | SM 40km | 0~70°C | SFP-OC48-BX40-D5, C-Temp | | |
FSFP-E8-S53-40Di | 2.5G | Tx1550nm / Rx1310nm | BiDi LC | SM 40km | -40~85°C | SFP-OC48-BX40-D5, I-Temp | | |
FSFP-E8-S45-60D | 2.5G | Tx1490nm / Rx1550nm | BiDi LC | SM 60km | 0~70°C | SFP-OC48-BX60-U4 | - | |
FSFP-E8-S54-60D | 2.5G | Tx1550nm / Rx1490nm | BiDi LC | SM 60km | 0~70°C | SFP-OC48-BX60-D5 | - | |
FSFP-E8-S45-80D | 2.5G | Tx1490nm / Rx1550nm | BiDi LC | SM 80km | 0~70°C | SFP-OC48-BX80-U4 | - | |
FSFP-E8-S54-80D | 2.5G | Tx1550nm / Rx1490nm | BiDi LC | SM 80km | 0~70°C | SFP-OC48-BX80-D5 | - | |
FSFP-E2-S35-20D | 2.5G | Tx1310nm / Rx1550nm | BiDi SC | SM 20km | 0~70°C | SFP-OC48-BX20-U3-SC, C-Temp | | |
FSFP-E2-S35-20Di | 2.5G | Tx1310nm / Rx1550nm | BiDi SC | SM 20km | -40~85°C | SFP-OC48-BX20-U3-SC, I-Temp | | |
FSFP-E2-S53-20D | 2.5G | Tx1550nm / Rx1310nm | BiDi SC | SM 20km | 0~70°C | SFP-OC48-BX20-D5-SC, C-Temp | | |
FSFP-E2-S53-20Di | 2.5G | Tx1550nm / Rx1310nm | BiDi SC | SM 20km | -40~85°C | SFP-OC48-BX20-D5-SC, I-Temp | | |
FSFP-E2-S45-60D | 2.5G | Tx1490nm / Rx1550nm | BiDi SC | SM 60km | 0~70°C | SFP-OC48-BX60-U4-SC | - | |
FSFP-E2-S54-60D | 2.5G | Tx1550nm / Rx1490nm | BiDi SC | SM 60km | 0~70°C | SFP-OC48-BX60-D5-SC | - | |
FSFP-E2-S45-80D | 2.5G | Tx1490nm / Rx1550nm | BiDi SC | SM 80km | 0~70°C | SFP-OC48-BX80-U49-SC | - | |
FSFP-E2-S54-80D | 2.5G | Tx1550nm / Rx1490nm | BiDi SC | SM 80km | 0~70°C | SFP-OC48-BX80-D55-SC | - |
