AOC (Active Optical Cable)

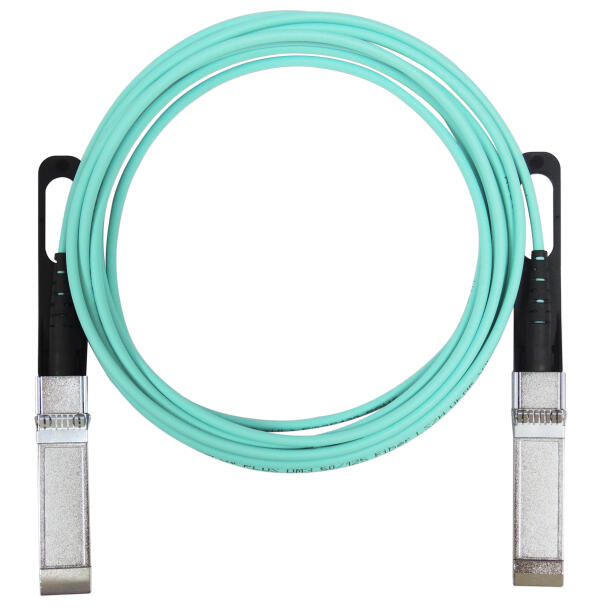

10G SFP+ AOC
10G SFP+ Active Optical Cable (AOC)
Hot Pluggable, Fiber Cable, 850nm, Multi-Mode, 1M~150M
| Part Number | Data Rate | Connector | Cable | Cable Specification | Length | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FAOC-10G-SPSP-xxx-xx | 10G | SFP+ to SFP+ | Fiber | OM3 | 1M~150M | SFP+ 10G-AOC | |
- 10GBASE-SR Ethernet Link
- InfiniBand SDR, DDR, QDR, FDR-10
- Data Center & Storage
- Datacom Telecom Switch & Router
- Compatible with IEEE802.3ae 10GBASE-SR
- Compliant with SFF-8431 SFP+ MSA
- Support InfiniBand SDR, DDR, QDR & FDR-10
- Up to 11.2Gbps data rate
- Hot Pluggable
- 850nm VCSEL transmitter and PIN receiver
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single 3.3V power supply
- Link distance up to 150m over MM OM3 fiber
- Low power consumption <1.0W
- RoHS Compliant
