SFP

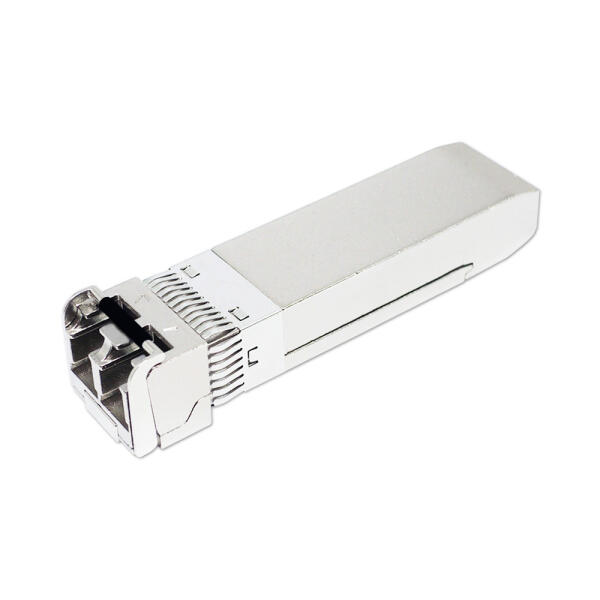

4.25G SFP-Duplex
4.25G Fiber Channel SFP Transceiver
Hot Pluggable, Duplex LC, 850nm/1310nm/1550nm, Multi-Mode/Single Mode, 150M~40KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSFP-F7-M85-X1D | 4.25G | 850nm | Duplex LC | OM2 150m | 0~70°C | SFP-4GFC-SW | |
| FSFP-F7-M85-X1DM | 4.25G | 850nm | Duplex LC | OM2 150m | 0~70°C | SFP-4GFC-SW, Multi-Rate | |
| FSFP-F7-M85-X1DMi | 4.25G | 850nm | Duplex LC | OM2 150m | -40~85°C | SFP-4GFC-SW, Multi-Rate, I-Temp | |
| FSFP-F7-S13-04D | 4.25G | 1310nm | Duplex LC | SM 4km | 0~70°C | SFP-4G-LW04 | |
| FSFP-F7-S13-10D | 4.25G | 1310nm | Duplex LC | SM 10km | 0~70°C | SFP-4G-LW10 | |
| FSFP-F7-S13-40D | 4.25G | 1310nm | Duplex LC | SM 40km | 0~70°C | SFP-4G-LW40 | |
| FSFP-F7-S15-40D | 4.25G | 1550nm | Duplex LC | SM 40km | 0~70°C | SFP-4G-LW40 |
- Fiber Channel
- 400-M6 / M5 / M5E / M5F 4GFC @4.25G,
200-M6 / M5 / M5E 2GFC @2.125G,
100-M6 / M5 / M5E 1GFC @1.0625G
- Compliant with INF-8074i SFP MSA
- Support 4.25G / 2.125G / 1.0625G Multi-Rate
- Hot Pluggable
- 850nm/1310nm/1550nm laser transmitter
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 150m~40km over fiber
- RoHS Compliant
