10G CSFP+

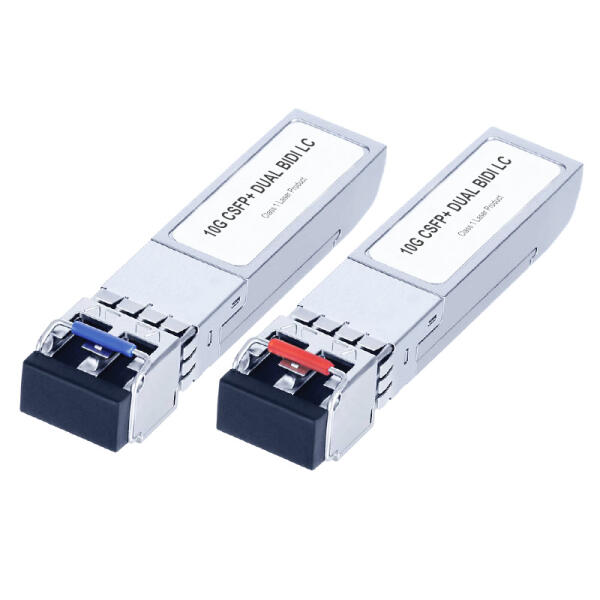

10G CSFP+ Duplex BiDi LC

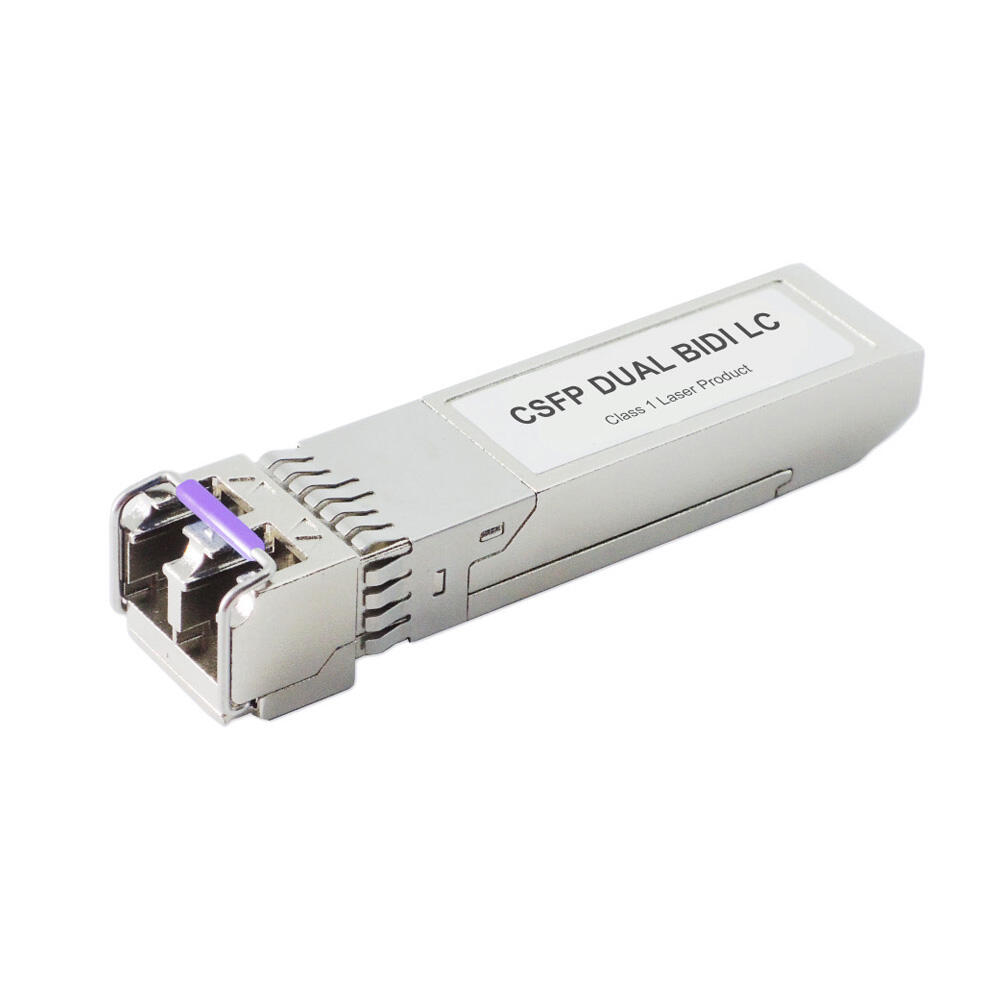

10G SFP+ 10G-BX(BR)-D Compact 2CH BiDi Transceiver
Hot Pluggable, Duplex BiDi LC, 1270nm / 1330nm, Single Mode, 10KM~20KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSPP-HC-C27-10D | 10G | Tx1270nm / Rx1330nm | Duplex BiDi LC | SM 10km | 0~70°C | CSFP-10G-BX10-U27 | |
| FSPP-HC-C27-10Di | 10G | Tx1270nm / Rx1330nm | Duplex BiDi LC | SM 10km | -40~85°C | CSFP-10G-BX10-U27, I-Temp | |
| FSPP-HC-C33-10D | 10G | Tx1330nm / Rx1270nm | Duplex BiDi LC | SM 10km | 0~70°C | CSFP-10G-BX10-D33 | |
| FSPP-HC-C33-10Di | 10G | Tx1330nm / Rx1270nm | Duplex BiDi LC | SM 10km | -40~85°C | CSFP-10G-BX10-D33, I-Temp | |
| FSPP-HC-C27-20D | 10G | Tx1270nm / Rx1330nm | Duplex BiDi LC | SM 20km | 0~70°C | CSFP-10G-BX20-U27 | |
| FSPP-HC-C27-20Di | 10G | Tx1270nm / Rx1330nm | Duplex BiDi LC | SM 20km | -40~85°C | CSFP-10G-BX20-U27, I-Temp | |
| FSPP-HC-C33-20D | 10G | Tx1330nm / Rx1270nm | Duplex BiDi LC | SM 20km | 0~70°C | CSFP-10G-BX20-D33 | |
| FSPP-HC-C33-20Di | 10G | Tx1330nm / Rx1270nm | Duplex BiDi LC | SM 20km | -40~85°C | CSFP-10G-BX20-D33, I-Temp | |
| FSPP-HC-C27-20DM | 10G | Tx1270nm / Rx1330nm | Duplex BiDi LC | SM 20km | 0~70°C | CSFP-10G-BX20-U27-DD, Multi-Rate | |
| FSPP-HC-C27-20DMi | 10G | Tx1270nm / Rx1330nm | Duplex BiDi LC | SM 20km | -40~85°C | CSFP-10G-BX20-U27-DD, Multi-Rate, I-Temp | |
| FSPP-HC-C33-20DM | 10G | Tx1330nm / Rx1270nm | Duplex BiDi LC | SM 20km | 0~70°C | CSFP-10G-BX20-D33-DD, Multi-Rate | |
| FSPP-HC-C33-20DMi | 10G | Tx1330nm / Rx1270nm | Duplex BiDi LC | SM 20km | -40~85°C | CSFP-10G-BX20-D33-DD, Multi-Rate, I-Temp | |
- 10GBASE-BX(BR) Ethernet @10.3125G
- Fiber Channel 800-SM-LC-L 8GFC @8.5G, 1200-SM-LL-L 10GFC @10.51875G
- SONET OC-192 & SDH STM-64 @9.953G
- Support InfiniBand 4x FDR-10, 4xFDR, 4xEDR
- CPRI Option #7 @9.83G, #8 @10.1376G
- Compatible with IEEE802.3ae 10GBASE-BX(BR)
- Compliant with CPRI Option 7, 8
- Compliant with SFF-8431, SFF-8432 SFP+ MSA
- Support 8.5Gb/s to 10.51875Gb/s Multi-Rate
- Compliant with CSFP MSA Option 2
- Hot Pluggable
- 2CH BiDi unit with 1270nm DFB laser transmitter and 1330nm PIN receiver
- Dual BiDi LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 10km~20km over SM fiber
- RoHS Compliant
