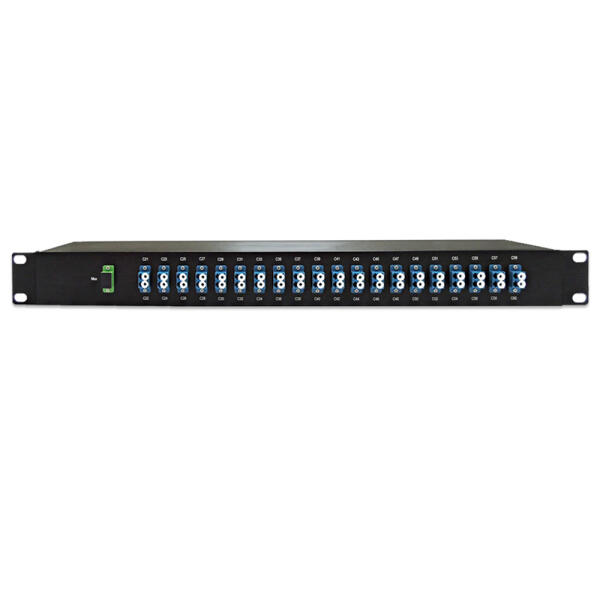

Thin Flim Filter DWDM 100GHz MUX/DEMUX Module

General Datasheet Download

8-CH Mux+Demux Datasheet Download

Parameter	Min.	Typ.	Max.	Unit.	Note.
Center Wavelength Range	C61(1528.77nm) ~ C15(1565.50nm) per ITU-Grid	C61(1528.77nm) ~ C15(1565.50nm) per ITU-Grid	C61(1528.77nm) ~ C15(1565.50nm) per ITU-Grid	C61(1528.77nm) ~ C15(1565.50nm) per ITU-Grid
Channel Spacing	100GHz ( 0.8nm )	100GHz ( 0.8nm )	100GHz ( 0.8nm )	100GHz ( 0.8nm )
Fiber Type	SMF-28e or equivalent Single Mode Fiber	SMF-28e or equivalent Single Mode Fiber	SMF-28e or equivalent Single Mode Fiber	SMF-28e or equivalent Single Mode Fiber
Center Wavelength Accuracy	±0.05	±0.05	±0.05	nm
Channel Passband (@-0.5dB) (nm)	0.22	0.22	0.22	nm
Passband Ripple (dB)			0.5;	dB
Optical Insertion Loss at ITU grid ( for MUX or DEMUX only, not for Pair Loss of MUX+DEMUX )	4CH	8CH	16CH		1
Optical Insertion Loss at ITU grid ( for MUX or DEMUX only, not for Pair Loss of MUX+DEMUX )	<1.8	<3.0	<4.0	dB	1
Optical Insertion Loss at ITU grid ( for MUX or DEMUX only, not for Pair Loss of MUX+DEMUX )	24CH	32CH	40CH		1
Optical Insertion Loss at ITU grid ( for MUX or DEMUX only, not for Pair Loss of MUX+DEMUX )	<4.8	<5.6	<6.2	dB	1
Adjacent Channel Isolation	30			dB
Non-Adjacent Channel Isolation	40			dB
PDL / Polarization Dependent Loss			0.2	dB	2
PMD / Polarization Mode Dispersion			0.1	ps
Optical Return Loss	40			dB
PDirectivity	50			dB
Maximum Optical Power			0.5	Ps
Maximum Optical Power			300	mW
1U 19” Rack-Mount Dimension	-432(W) x 44(H) x 200(D)	-432(W) x 44(H) x 200(D)	-432(W) x 44(H) x 200(D)	mm	3

Note 1. . IL represents the worst case over a ±0.08nm window around the ITU wavelength without Connector Loss.

Note 2. PDL was measured on average polarization over a ±0.08nm window around the ITU wavelength.

Note 3. The Width Dimension 432mm is for the main package body only.

Optical Specifications
