DAC (Direct-Attach Cable)
25G SFP28 DAC

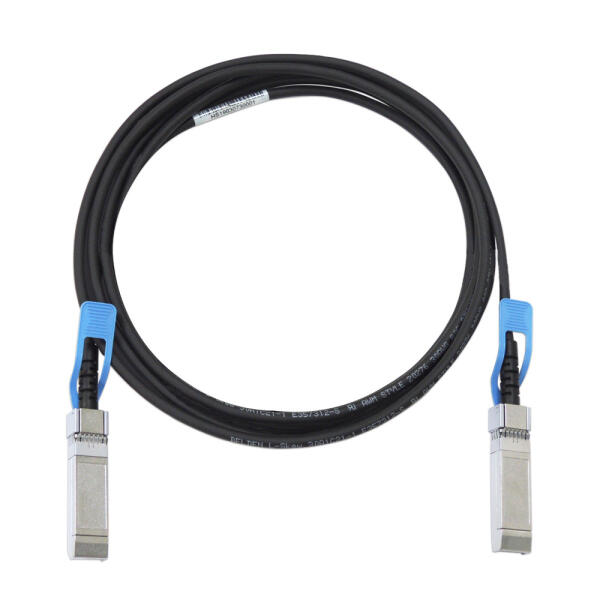

25G SFP28 Direct Attach Cable (DAC)
Hot Pluggable, Copper Cable, 0.5M~5M
| Data Rate | Connector | Signal | Cable | Cable Specification | Length | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| 25G | SFP28 to SFP28 | Passive | Copper | AWG30 | 0.5M~3M | SFP28-25G-DAC | |
| 25G | SFP28 to SFP28 | Passive | Copper | AWG28 | 2.5M~3M | SFP28-25G-DAC | |
| 25G | SFP28 to SFP28 | Passive | Copper | AWG26 | 3M~5M | SFP28-25G-DAC | |
- 1000BASE ~ 25GBASE Ethernet
- 1G/2G/4G/8G/16G Fiber Channel
- InfiniBand SDR, DDR, QDR, FDR-10, FDR, EDR
- Data Center & Storage
- Datacom / Telecom Switch & Router
- Compliant with IEEE802.3by 25GBASE-CR
- Compliant with SFF-8402 SFP28 and SFF-8432 MSA
- Support 1G~25G Ethernet
- Support 1G/2G/4G/8G/16G Fiber Channel
- Support InfiniBand SDR, DDR, QDR, FDR, EDR
- Hot Pluggable
- 2-wire interface for management
- Single +3.3V power supply
- Link distance up to 5m
- Enhanced EMI / EMC performance
- RoHS Compliant
