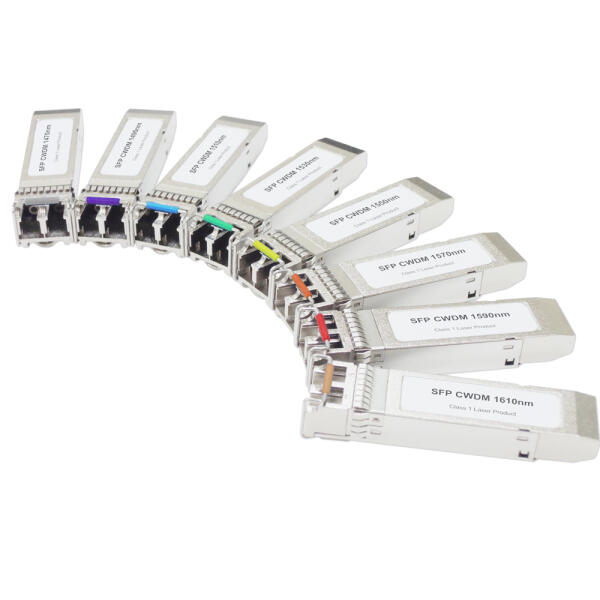

1.25G Gigabit Ethernet CWDM SFP Transceiver
Hot Pluggable, Duplex LC, CWDM1270~1610nm, Single Mode, 40KM~140KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSFP-C7-Cxx-b19D | 1.25G | CWDM 1270nm~1610nm | Duplex LC | 19dB margin (SM 40km) | 0~70°C | SFP-1000CWDMxx-19dB (xx = 27~61) | |
| FSFP-C7-Cxx-b19Di | 1.25G | CWDM 1270nm~1610nm | Duplex LC | 19dB margin (SM 40km) | -40~85°C | SFP-1000CWDMxx-19dB (xx = 27~61), I-Temp | |
| FSFP-C7-Cxx-b24D | 1.25G | CWDM 1270nm~1610nm | Duplex LC | 24dB margin (SM 80km) | 0~70°C | SFP-1000CWDMxx-24dB (xx = 27~61) | |
| FSFP-C7-Cxx-b24Di | 1.25G | CWDM 1270nm~1610nm | Duplex LC | 24dB margin (SM 80km) | -40~85°C | SFP-1000CWDMxx-24dB (xx = 27~61), I-Temp | |
| FSFP-C7-Cxx-b32D | 1.25G | CWDM 1270nm~1610nm | Duplex LC | 32dB margin (SM 120km) | 0~70°C | SFP-1000CWDMxx-32dB (xx = 27~61) | |
| FSFP-C7-Cxx-b32Di | 1.25G | CWDM 1270nm~1610nm | Duplex LC | 32dB margin (SM 120km) | -40~85°C | SFP-1000CWDMxx-32dB (xx = 27~61), I-Temp | |
| FSFP-C7-Cxx-b35D | 1.25G | CWDM 1270nm~1610nm | Duplex LC | 35dB margin | 0~70°C | SFP-1000CWDMxx-35dB (xx = 27~61) | |
- Gigabit Ethernet @1.25G
- Fiber Channel 1GFC @1.0625G
- CWDM Networks
- Compliant with IEEE802.3z Gigabit Ethernet
- Compatible with Fiber Channel 100-SM-LC-L
- Compliant with INF-8074i SFP MSA
- Hot Pluggable
- Uncooled CWDM DFB laser transmitter and PIN receiver
- 18 CWDM Wavelength 1270~1610nm available
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 40km~140km over SM fiber
- RoHS Compliant
