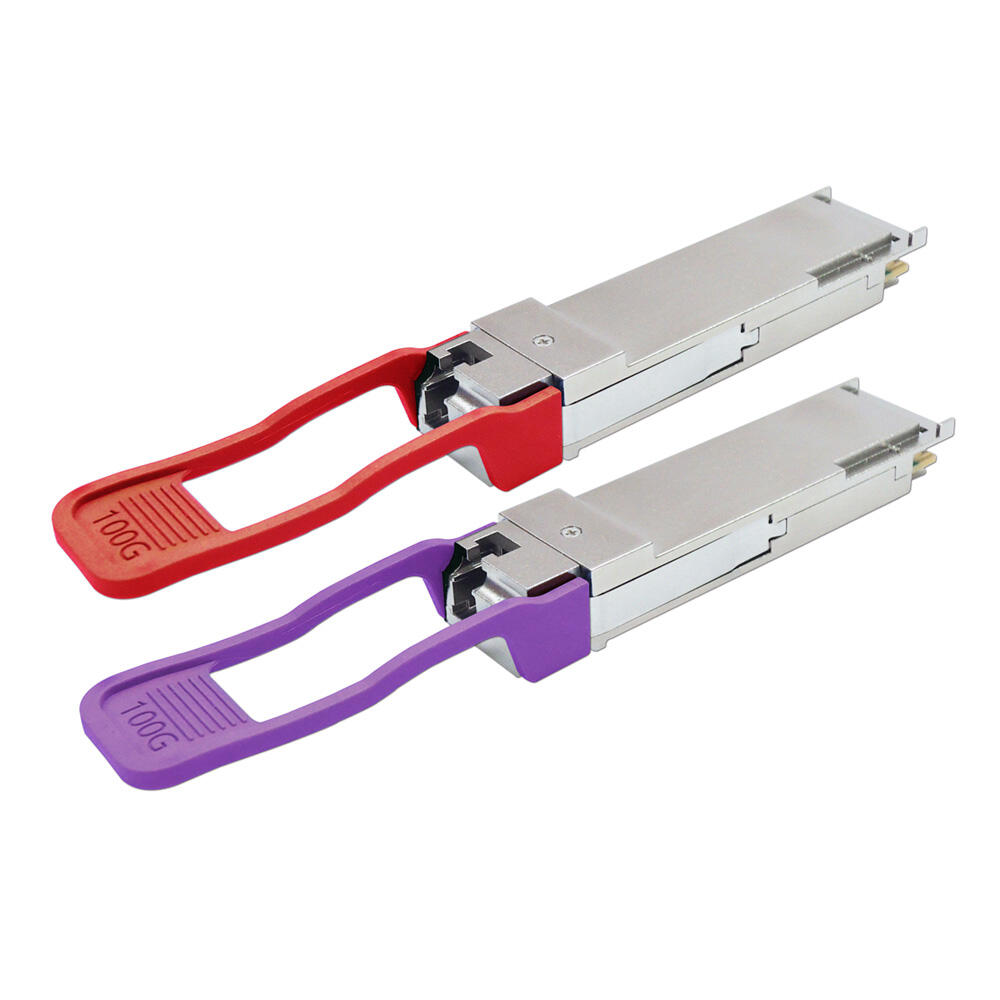

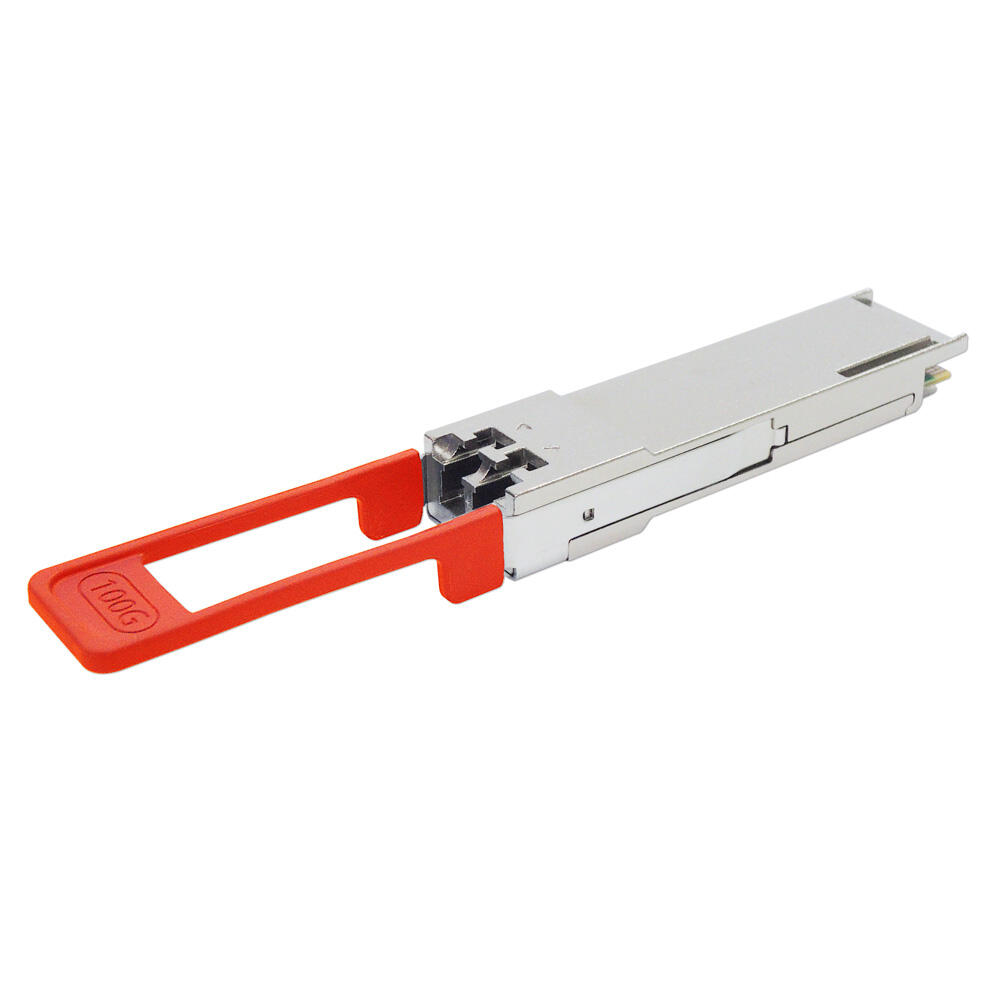

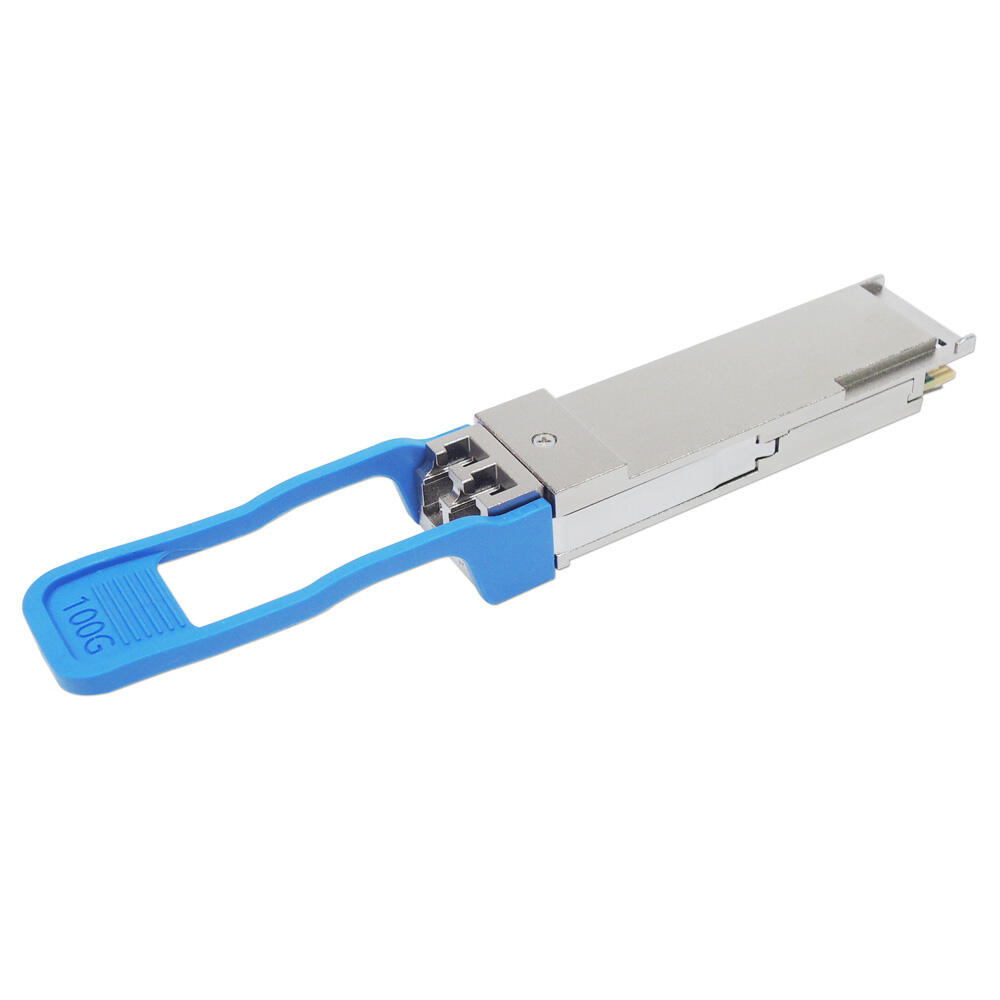

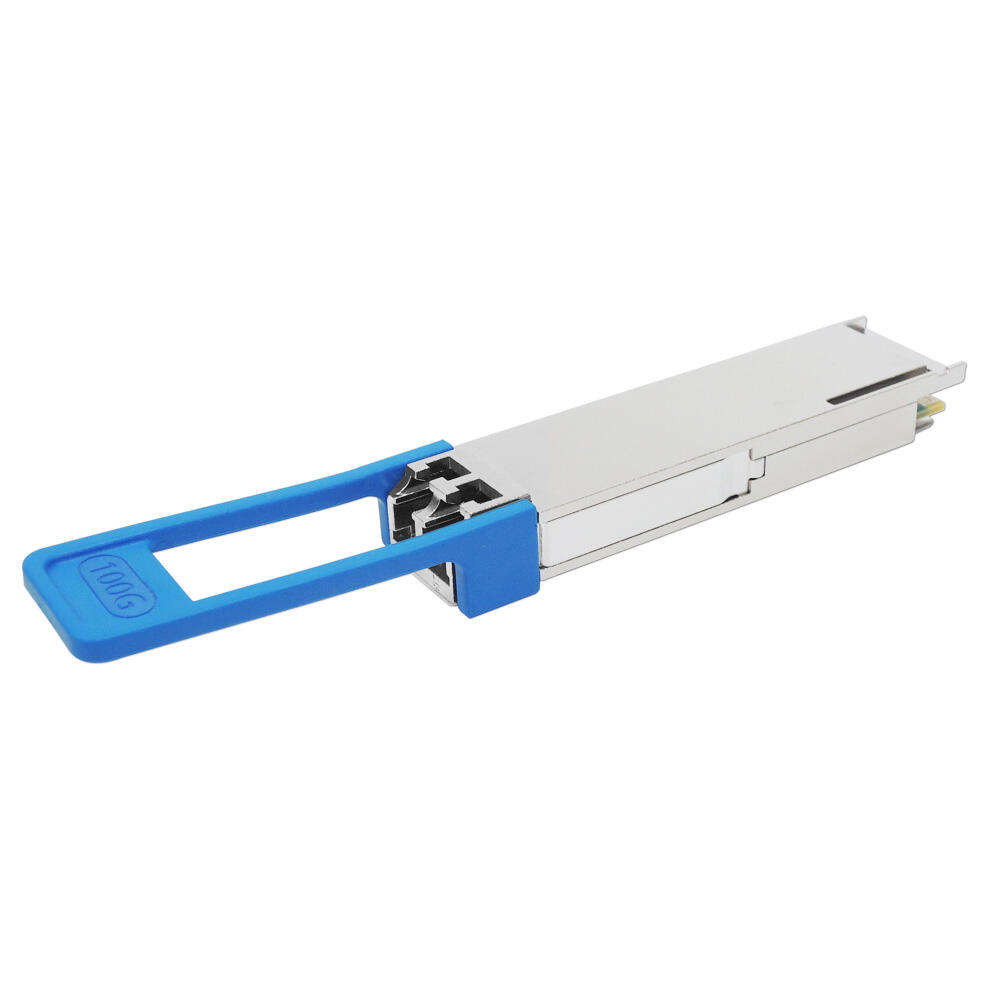

100G QSFP28
100G-QSFP28-ZR4/eZR4

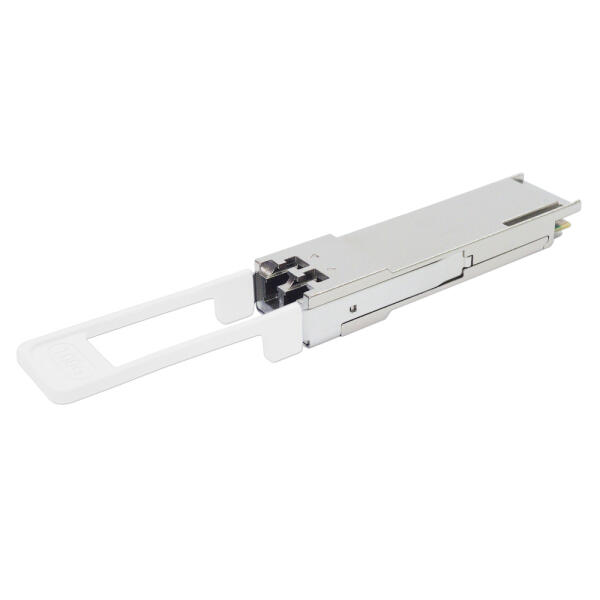

100G QSFP28 ZR4/eZR4 Transceiver
Hot Pluggable, Duplex LC, LAN-WDM EML, Single Mode, 80KM~100KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQ28-K7-L13-80D | 100G | LWDM EML | Duplex LC | SM 80km (with FEC) | 0~70°C | QSFP28-100G-ZR4 Single-Rate, C-Temp | |
| FQ28-K7-L13-80Di | 100G | LWDM EML | Duplex LC | SM 80km (with FEC) SM 60km (without FEC) | -40~85°C | QSFP28-100G-ZR4 Single-Rate, I-Temp | |
| FQ28-K7-L13-80DR | 100G | LWDM EML | Duplex LC | SM 80km (with FEC) | 0~70°C | QSFP28-100G-ZR4-OTU4, Dual-Rate | |
| FQ28-K7-L13-A0D | 100G | LWDM EML | Duplex LC | SM 100km (with FEC) SM 60km (without FEC) | 0~70°C | QSFP28-100G-eZR4 100km Single-Rate, C-Temp | |
- 100GBASE-ZR4 Ethernet
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compatible with IEEE802.3ba 100GBASE-ER4
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- 4CH LWDM MUX / DEMUX design
- Data Rate 25.78125Gbps per Lane
- Built in quad Tx CDR and Rx CDR
- Hot Pluggable QSFP28 footprint
- O-Band LWDM EML transmitter
- SOA + PIN receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 80km / 100km over SM fiber with FEC
- Link distance 60km over SM fiber without FEC
- RoHS compliant
