1X9

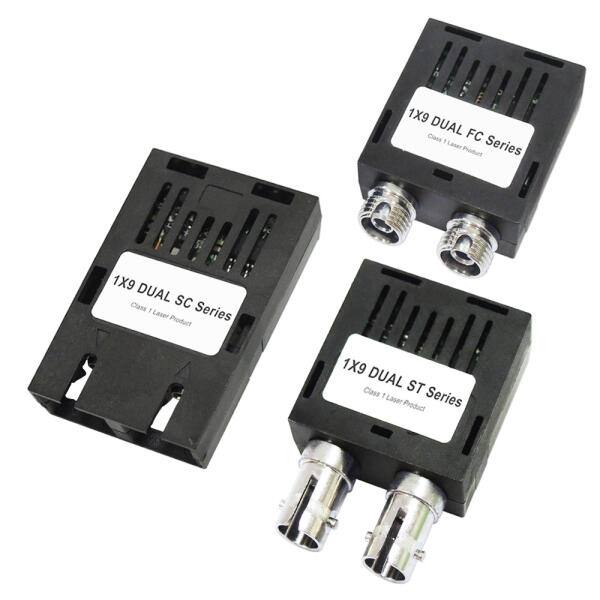

125/155M 1X9-CWDM
125M Fast Ethernet, 155M STM-1/OC-3 1X9 Transceiver
Duplex SC / FC / ST(metal), CWDM DFB, Single Mode, 31dB
SC Connector
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-A1-Cxx-b31P | 125/155M | CWDM DFB | Duplex SC | 31dB | 0~70°C | 1X9-155M-CWDM-31dB PECL-SC | |
| F1X9-A1-Cxx-b31Pi | 125/155M | CWDM DFB | Duplex SC | 31dB | -40~85°C | 1X9-155M-CWDM-31dB PECL-SC, I-Temp | |
FC Connector
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-A3-Cxx-b31P | 125/155M | CWDM DFB | Duplex FC | 31dB | 0~70°C | 1X9-155M-CWDM-31dB PECL-FC | |
| F1X9-A3-Cxx-b31Pi | 125/155M | CWDM DFB | Duplex FC | 31dB | -40~85°C | 1X9-155M-CWDM-31dB PECL-FC, I-Temp | |
ST Connector (plastic)
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-AM-Cxx-b31P | 125/155M | CWDM DFB | Duplex ST | 31dB | 0~70°C | 1X9-155M-CWDM-31dB PECL-ST | |
| F1X9-AM-Cxx-b31Pi | 125/155M | CWDM DFB | Duplex ST | 31dB | -40~85°C | 1X9-155M-CWDM-31dB PECL-ST, I-Temp | |
- 100BASE-ZX Ethernet
- SDH STM1 / SONET OC3
- CWDM Networks
- Compatible with 100BASE
- Compatible with SDH STM1 and SONET OC3
- Industry Standard 1x9 Footprint
- CWDM DFB laser transmitter
- Duplex SC/ST/FC optical connector
- Single 3.3V or 5V Power Supply
- DC-coupled Differential LVPECL inputs and outputs
- LVPECL / PECL Signal Detection Output
- Wave Solderable and Aqueous Washable
- Link budget 31dB over SM fiber
- RoHS Compliant
