1X9

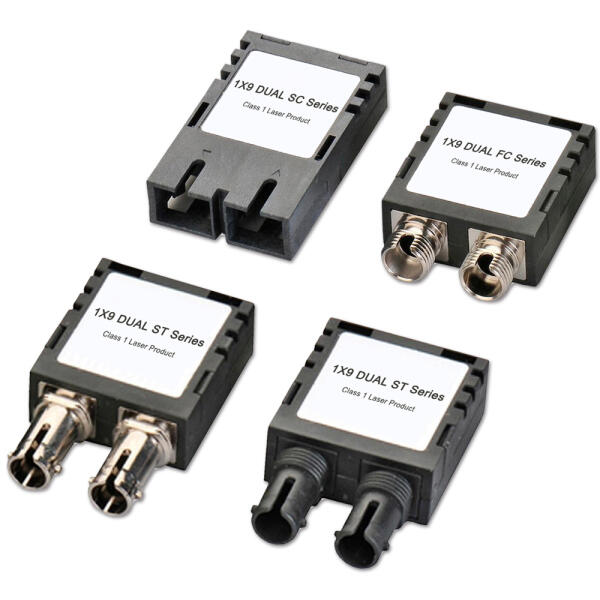

125M/155M 1X9-Duplex
125M Fast Ethernet, 155M STM-1/OC-3 1X9 Transceiver
Duplex SC / FC / ST(plastic) / ST(metal), 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 2KM~120KM
SC Connector
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-A1-M85-02P | 125M/155M | 850nm | Duplex SC | MM 2km | 0~70°C | 1X9-100SX-SC | |
| F1X9-A1-M85-02Pi | 125M/155M | 850nm | Duplex SC | MM 2km | -40~85°C | 1X9-100SX-SC, SD=LVPECL, I-Temp | |
| F1X9-A1-M13-02P | 125M/155M | 1310nm | Duplex SC | MM 2km | 0~70°C | 1X9-100FX-SC | |
| F1X9-A1-M13-02Pi | 125M/155M | 1310nm | Duplex SC | MM 2km | -40~85°C | 1X9-100FX-SC, SD=LVPECL, I-Temp | |
| F1X9-A1-S13-20P | 125M/155M | 1310nm | Duplex SC | SM 20km | 0~70°C | 1X9-100LX20-SC | |
| F1X9-A1-S13-20Pi | 125M/155M | 1310nm | Duplex SC | SM 20km | -40~85°C | 1X9-100LX20-SC, I-Temp | |
| F1X9-A1-S13-30P | 125M/155M | 1310nm | Duplex SC | SM 30km | 0~70°C | 1X9-100LX30-SC | |
| F1X9-A1-S13-30Pi | 125M/155M | 1310nm | Duplex SC | SM 30km | -40~85°C | 1X9-100LX30-SC, SD=LVPECL, I-Temp | |
| F1X9-A1-S13-40Pi | 125M/155M | 1310nm | Duplex SC | SM 40km | -40~85°C | 1X9-100EX40-SC, SD=LVPECL, I-Temp | |
| F1X9-A1-S13-60P | 125M/155M | 1310nm | Duplex SC | SM 60km | 0~70°C | 1X9-100EX60-SC | |
| F1X9-A1-S13-60Pi | 125M/155M | 1310nm | Duplex SC | SM 60km | -40~85°C | 1X9-100EX60-SC, I-Temp | |
| F1X9-A1-S15-80P | 125M/155M | 1550nm | Duplex SC | SM 80km | 0~70°C | 1X9-100ZX-SC | |
| F1X9-A1-S15-80Pi | 125M/155M | 1550nm | Duplex SC | SM 80km | -40~85°C | 1X9-100ZX-SC, I-Temp | |
| F1X9-A1-S15-A0P | 125M/155M | 1550nm | Duplex SC | SM 100km | 0~70°C | 1X9-100ZX100-SC | |
| F1X9-A1-S15-A0Pi | 125M/155M | 1550nm | Duplex SC | SM 100km | -40~85°C | 1X9-100ZX100-SC, I-Temp | |
| F1X9-A1-S15-A2P | 125M/155M | 1550nm | Duplex SC | SM 120km | 0~70°C | 1X9-100EZX-SC | |
| F1X9-A1-S15-A2Pi | 125M/155M | 1550nm | Duplex SC | SM 120km | -40~85°C | 1X9-100EZX-SC, I-Temp | |
FC Connector
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-A3-M85-02P | 125M/155M | 850nm | Duplex FC | MM 2km | 0~70°C | 1X9-100SX-FC | |
| F1X9-A3-M13-02P | 125M/155M | 1310nm | Duplex FC | MM 2km | 0~70°C | 1X9-100FX-FC | |
| F1X9-A3-M13-02Pi | 125M/155M | 1310nm | Duplex FC | MM 2km | -40~85°C | 1X9-100FX-FC, I-Temp | |
| F1X9-A3-S13-30P | 125M/155M | 1310nm | Duplex FC | SM 30km | 0~70°C | 1X9-100LX30-FC | |
| F1X9-A3-S13-30Pi | 125M/155M | 1310nm | Duplex FC | SM 30km | -40~85°C | 1X9-100LX30-FC, I-Temp | |
| F1X9-A3-S13-60P | 125M/155M | 1310nm | Duplex FC | SM 60km | 0~70°C | 1X9-100EX60-FC | |
| F1X9-A3-S13-60Pi | 125M/155M | 1310nm | Duplex FC | SM 60km | -40~85°C | 1X9-100EX60-FC, I-Temp | |
| F1X9-A3-S15-80P | 125M/155M | 1550nm | Duplex FC | SM 80km | 0~70°C | 1X9-100ZX-FC | |
| F1X9-A3-S15-A0P | 125M/155M | 1550nm | Duplex FC | SM 100km | 0~70°C | 1X9-100ZX100-FC | |
| F1X9-A3-S15-A0Pi | 125M/155M | 1550nm | Duplex FC | SM 100km | -40~85°C | 1X9-100ZX100-FC, I-Temp | |
| F1X9-A3-S15-A2P | 125M/155M | 1550nm | Duplex FC | SM 120km | 0~70°C | 1X9-100ZX100-FC | |
| F1X9-A3-S15-A2Pi | 125M/155M | 1550nm | Duplex FC | SM 120km | -40~85°C | 1X9-100EZX-FC, I-Temp | |
ST Connector (plastic)
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-A5-M85-02P | 125M/155M | 850nm | Duplex ST | MM 2km | 0~70°C | 1X9-100SX-ST | |
| F1X9-A5-M85-02Pi | 125M/155M | 850nm | Duplex ST | MM 2km | -40~85°C | 1X9-100SX-ST, I-Temp | |
| F1X9-A5-M13-02P | 125M/155M | 1310nm | Duplex ST | MM 2km | -40~85°C | 1X9-100FX-ST | |
| F1X9-A5-M13-02Pi | 125M/155M | 1310nm | Duplex ST | MM 2km | -40~85°C | 1X9-100FX-ST(Plastic), SD=LVPECL, I-Temp | |
| F1X9-A5-S13-30P | 125M/155M | 1310nm | Duplex ST | SM 30km | 0~70°C | 1X9-100LX30-ST | |
| F1X9-A5-S13-30Pi | 125M/155M | 1310nm | Duplex ST | SM 30km | -40~85°C | 1X9-100LX30-ST, I-Temp | |
| F1X9-A5-S13-60P | 125M/155M | 1310nm | Duplex ST | SM 60km | 0~70°C | 1X9-100EX60-ST | |
| F1X9-A5-S13-60Pi | 125M/155M | 1310nm | Duplex ST | SM 60km | -40~85°C | 1X9-100EX60-ST, I-Temp | |
| F1X9-A5-S15-80P | 125M/155M | 1550nm | Duplex ST | SM 80km | 0~70°C | 1X9-100ZX-ST | |
| F1X9-A5-S15-80Pi | 125M/155M | 1550nm | Duplex ST | SM 80km | -40~85°C | 1X9-100ZX-ST, I-Temp | |
| F1X9-A5-S15-A0P | 125M/155M | 1550nm | Duplex ST | SM 100km | 0~70°C | 1X9-100ZX100-ST | |
| F1X9-A5-S15-A0Pi | 125M/155M | 1550nm | Duplex ST | SM 100km | -40~85°C | 1X9-100ZX100-ST, I-Temp | |
| F1X9-A5-S15-A2P | 125M/155M | 1550nm | Duplex ST | SM 120km | 0~70°C | 1X9-100EZX-ST | |
| F1X9-A5-S15-A2Pi | 125M/155M | 1550nm | Duplex ST | SM 120km | -40~85°C | 1X9-100EZX-ST, I-Temp | |
ST Connector (metal)
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| F1X9-AM-M85-02P | 125M/155M | 850nm | Duplex ST | MM 2km | 0~70°C | 1X9-100SX-ST | |
| F1X9-AM-M85-02Pi | 125M/155M | 850nm | Duplex ST | MM 2km | -40~85°C | 1X9-100SX-ST, I-Temp | |
| F1X9-AM-M13-02P | 125M/155M | 1310nm | Duplex ST | MM 2km | 0~70°C | 1X9-100FX-ST | |
| F1X9-AM-M13-02Pi | 125M/155M | 1310nm | Duplex ST | MM 2km | -40~85°C | 1X9-100FX-ST, I-Temp | |
| F1X9-AM-S13-30P | 125M/155M | 1310nm | Duplex ST | SM 30km | 0~70°C | 1X9-100LX30-ST | |
| F1X9-AM-S13-30Pi | 125M/155M | 1310nm | Duplex ST | SM 30km | -40~85°C | 1X9-100LX30-ST, I-Temp | |
| F1X9-AM-S13-60P | 125M/155M | 1310nm | Duplex ST | SM 60km | 0~70°C | 1X9-100EX60-ST | |
| F1X9-AM-S13-60Pi | 125M/155M | 1310nm | Duplex ST | SM 60km | -40~85°C | 1X9-100EX60-ST, I-Temp | |
| F1X9-AM-S15-80P | 125M/155M | 1550nm | Duplex ST | SM 80km | 0~70°C | 1X9-100ZX-ST | |
| F1X9-AM-S15-A0P | 125M/155M | 1550nm | Duplex ST | SM 100km | 0~70°C | 1X9-100ZX100-SC | |
| F1X9-AM-S15-A0Pi | 125M/155M | 1550nm | Duplex ST | SM 100km | -40~85°C | 1X9-100ZX100-SC, I-Temp | |
| F1X9-AM-S15-A2P | 125M/155M | 1550nm | Duplex ST | SM 120km | 0~70°C | 1X9-100EZX-ST | |
| F1X9-AM-S15-A2Pi | 125M/155M | 1550nm | Duplex ST | SM 120km | -40~85°C | 1X9-100EZX-ST, I-Temp | |
- Fast Ethernet 100BASE @125M
- SDH STM-1 / SONET OC-3 @155M
- Compatible with IEEE802.3ah 100BASE
- Compatible with SDH STM-1 S1.1 and SONET OC-3 IR-1
- 850nm/1310nm/1550nm FP laser transmitter
- SC/FC/ST(plastic)/ST(metal) connector
- Single 3.3V or 5V Power Supply
- DC-coupled Differential LVPECL inputs and outputs
- LVPECL / PECL Signal Detection Output
- Wave Solderable and Aqueous Washable
- Link distance 2km~120km over MM/SM fiber
- RoHS Compliant
