AOC (Active Optical Cable)
100G QSFP28 AOC

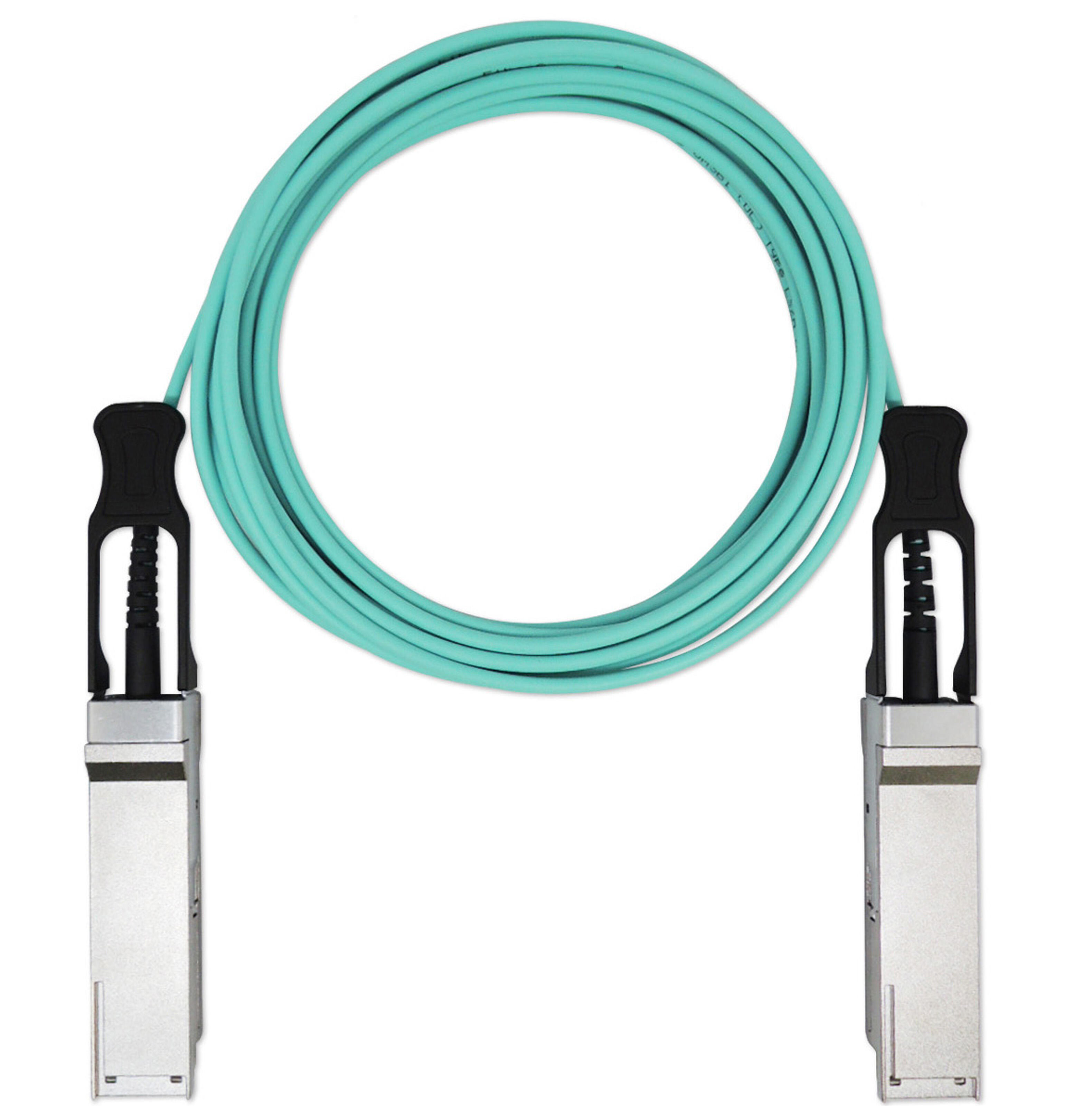

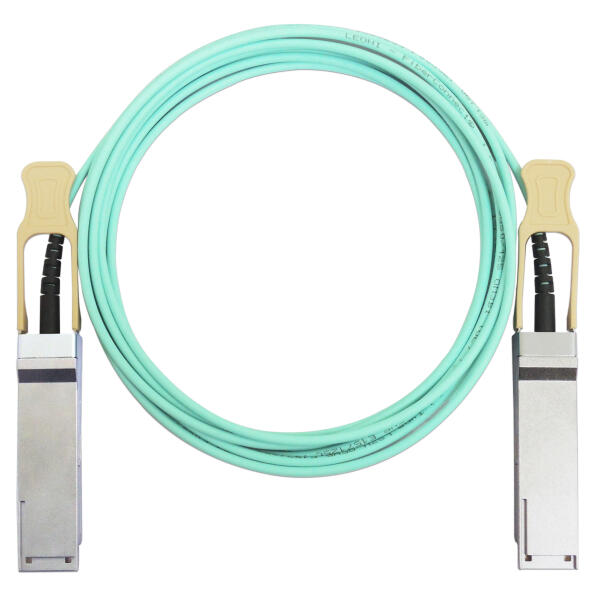

100G QSFP28 Active Optical Cable (AOC)
Hot Pluggable, Fiber Cable, 850nm, Multi-Mode, 1M~100M
| Part Number | Data Rate | Connector | Cable Specification | Wavelength | Length | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FAOC-A0G-QPQP-xxx-xx | 100Gbps | QSFP28 to QSFP28 | OM4 | 850nm | 1M~100M | QSFP28-100G-AOC | |
| FAOC-A0G-QPSP-xxx-xx | 100Gbps | QSFP28 to 4SFP28 | OM4 | 850nm | 1M~100M | QSFP28-4SFP-AOC | |
- 100GBASE-SR4 Ethernet Link
- InfiniBand QDR, EDR
- Data Center & Storage
- Datacom / Telecom Switch & Router
- Compatible with IEEE802.3bm 100GBASE-SR4
- Compliant with SFF-8665 QSFP28 MSA
- Compliant to IEEE 802.3bm CAUI-4 Interface
- Support InfiniBand QDR, EDR
- 4 independent full-duplex channels
- Up to 25.78125Gbps data rate per channel
- Hot Pluggable
- 850nm VCSEL array transmitter
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 100m over MM OM4 fiber and 70m over MM OM3 fiber
- Low power consumption <2.5W
- RoHS Compliant
