2X5 SFF

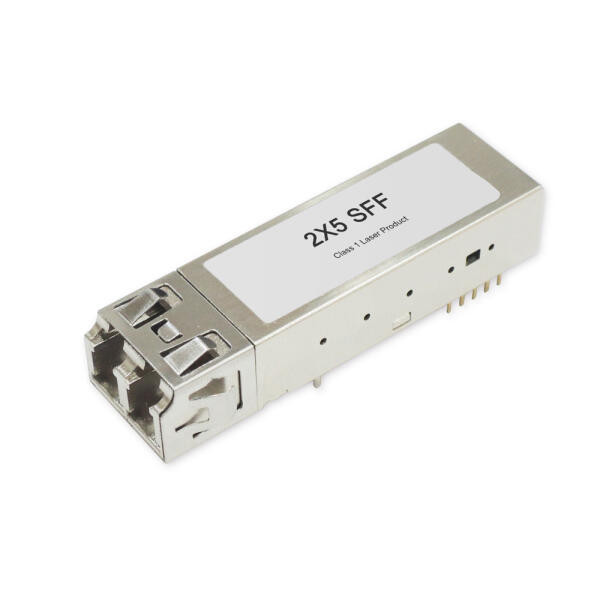

125M 2X5 SFF
125M Fiber Channel 2X5 Transceiver
Hot Pluggable, Duplex LC, 850nm / 1310nm, Multi-Mode / Single Mode, 550M~10KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSF1-C7-M85-X5TR | 125M/1.25G | 850nm | Duplex LC | OM2 2km/550m | 0~70°C | 2X5-100SX,1000SX | |
| FSF1-C7-M85-X5TRi | 125M/1.25G | 850nm | Duplex LC | OM2 2km/550m | -40~85°C | 2X5-100SX,1000SX, I-Temp | |
| FSF1-C7-S13-10TR | 125M/1.25G | 1310nm | Duplex LC | SM 10km | 0~70°C | 2X5-100LX,1000LX | |
| FSF1-C7-S13-10TRi | 125M/1.25G | 1310nm | Duplex LC | SM 10km | -40~85°C | 2X5-100LX,1000LX, I-Temp | |
- Fast Ethernet 100BASE-SX @125M
- Gigabit Ethernet 1000BASE-SX, LX @1.25G
- Fiber Channel 1GFC @1.0625G
- Compatible with TIA/EIA-785 100BASE-SX (100SX, 1000SX)
- Compatible with IEEE802.3ah Fast Ethernet (100LX, 1000LX)
- Compliant with IEEE802.3z Gigabit Ethernet
- Compliant with Fiber Channel 100-M5-SN-I (100SX, 1000SX)
- Compliant with Fiber Channel 100-SM-LC-L (100LX, 1000LX)
- Compliant with SFF MSA-2000 (100LX, 1000LX)
- Industry Standard 2x5 SFF Footprint
- 850nm/1310nmlaser transmitter
- Duplex LC connector
- Single 3.3V power supply
- LVTTL Signal Detection Output
- Link distance 2km(100SX) and 550m(1000SX) over MM OM2 fiber
- Link distance 10km over SM fiber (100LX, 1000LX)
- RoHS Compliant
