SFP+
10G SFP+ DWDM-Tunable

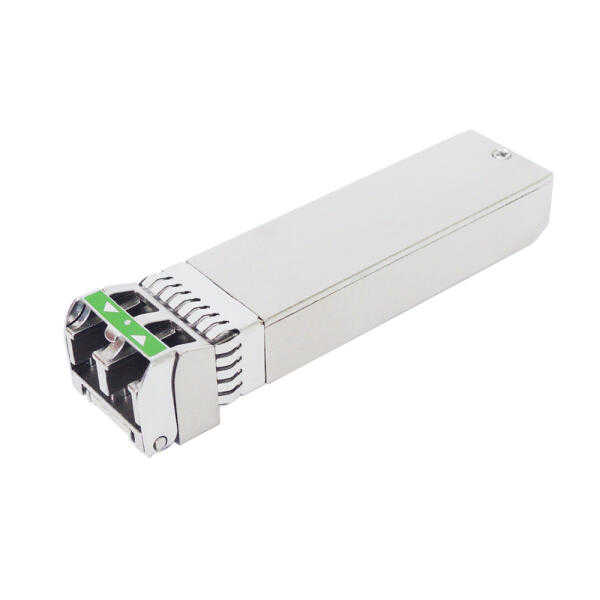

10G SFP+ DWDM Tunable Transceiver
Hot Pluggable, Duplex LC, 50GHz DWDM MZM, SMF 80KM
| お問い合わせカート | Specification | Applications | Features | Download |
|---|---|---|---|---|
| Part NumberData RateDistanceWavelengthConnectorOutput PowerSensitivityTemperatureRemarkDatasheetFSPP-H7-DTU-80D10GSM 80km50GHz DWDM MZMDuplex LC0 ~ +4dBm-24dBm0~70°CSFP+DWDM-Tunable-ZR 80km-50GHzFSPP-H7-DTU-80Di10GSM 80km50GHz DWDM MZMDuplex LC0 ~ +4dBm-24dBm-40~85°CSFP+DWDM-Tunable-ZR 80km-50GHz, I-Temp | 10GBASE-LR/LW Ethernet @10.3125GFiber Channel 800-SM-LC-L 8GFC @8.5G,1200-SM-LL-L 10GFC @10.51875GSONET OC-192 & SDH STM-64 @9.953GCPRI Option #7 @9.83G, #8 @10.1376GOTN OTU2 @10.7G, OTU2e @11.09G,OTU2f @11.32G10G DWDM Networks | Compliant with 10GBASE-ZR/ZWCompliant with SONET OC192/ SDH STM64 with ITU-T G.709 and G.959.1 P1L1-2D2Compliant with SFF-8431, SFF-8432 SFP+ MSAHot Pluggable50GHz ITU Grid channel spacing with integrated wavelength locker and auto-tuning technologyMonolithically integrated full C-band DWDM tunable transmitterAPD receiverDuplex LC connector2-wire interface for management and diagnostic monitor compliant with SFF-8472Single +3.3V power supplyLink distance 80km over SM fiberMaximum power consumption 2.5WRoHS Compliant |
