Fiber Distribution Box (FDB)
Rack-Mount
Fiber Distribution Box / Optical Distribution Frame
1U 24-Port Rack-Mount, Sliding Rail
1U 24-Port Rack-Mount, Fixed Adaptor Panel and Splice Tray
4U 48-Port Rack-Mount, Fixed Adaptor Panel, Sliding Splice Tray

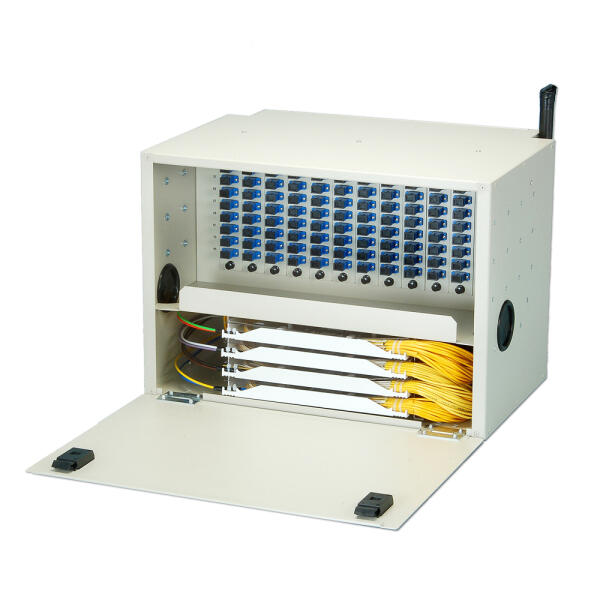

6.5U 96-Port Rack-Mount, Fixed Adaptor Panel, Sliding Splice Tray
7U 120-Port Rack-Mount, Fixed Adaptor Panel, Sliding Splice Tray
| Part Number | Data Rate | Dimension | Adaptor | Material | Splice Tray | Box Body | Full Package | Datasheet |
|---|---|---|---|---|---|---|---|---|
| FFDB-RM- 24Sx-xxxxxx | 24port | 430mm x 300mm x 45mm (1U) | SC/FC/ST/LC | Aluminum | 150mm x 110mm (12 Cores) x 2pcs | 4.0kg | 4.5kg | |
| FFDB-RM-24Ax-xxxxxx | 24port | 430mm x 300mm x 45mm (1U) | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 Cores) x 1pc | 1.5kg | 2.0kg | |
| FFDB-RM-48Ax-xxxxxx | 48port | 430mm x 300mm x 175mm (4U) | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 Cores) x 2pcs | 3.0kg | 4.2kg | |
| FFDB-RM-96Ax-xxxxxx | 96port | 430mm x 300mm x 300mm (6.5U) | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 Cores) x 4pcs | 4.6kg | 6.2kg | |
| FFDB-RM-120Ax-xxxxxx | 120port | 430mm x 300mm x 310mm (7U) | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 Cores) x 5pcs | 5.0kg | 6.5kg | |
- LAN / WAN
- CATV Network
- FTTx Network
- Easy Installation & Maintenance
- High reliability and stability
- SC / FC / ST / LC Adaptor or Option
- Anti-Rust paint coating
- Cost Effective
- Sliding Rail
