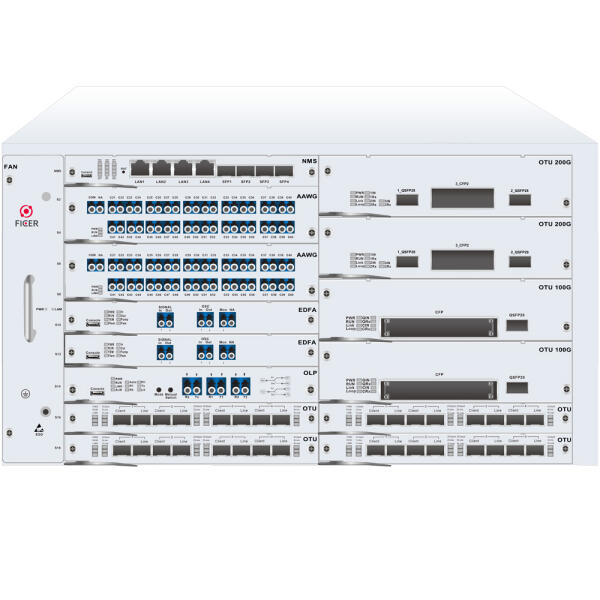

F520 5U 20-Slot Chassis
F520 5U 20-Slot Chassis
| Parameter | Technical indicators | |
|---|---|---|
| Size (mm) | 5U 19” : 482.5(W) x 350(D) x 222.5(H) | |
| Slot | 1-Slot for Management, 19-Slot for Service | |
| Power Supply | Dual Power Supply 100~240VAC, -48VDC optional | |
| Power Consumption | <500W | |
| FAN | 6*80mm FAN | |
| Enviornment │ Operating Temperature | -10 ~ 60 °C | |
| Enviornment │ Storage Temperature | -40 ~ 85 °C | |
| Enviornment │ Relative Humidity | 5 ~ 95 RH% |
- 5U 19” Rack Compact size
- 1 Slot for Management
- 19 Slots for Service module cards
- Modular design for Power and FAN module
- Hot Pluggable, Easy Replacement
- 1+1 Balanced and Redundancy Power supply,
- AC / DC optional
- Support SNMP-based Network management
- Support CLI, WEB, Telnet and NMS
- Visual Graphic information interface
- Support Entire network topology, elements auto-discovery and generation
- Support Voice alarm, e-mail alerts, SMS alerts, Real-time online remote monitoring
📣 Unlock Short Distance Transmission: How to Maximize Optical Network Solution!
🌟FICER F520 OTN DWDM Transmission Platform is designed to tackle your fiber optic network challenges, offering features that ensure ease of use, installation, deployment, and management.
In addition to maintaining system stability, the primary function of the FICER F520 is to achieve ultra-long-distance transmission of up to 1500km using existing fiber resources, without the need to deploy new cables. It is ideal for bandwidth expansion within or between metropolitan areas, long-distance backbone transmission, and massive data capacity transmission.
Moreover, the FICER F520 equipment allows for the flexible construction of cost-effective optical transmission networks, making it an ideal choice for data centres, telecommunication providers, carriers, service providers, and enterprise networks.
