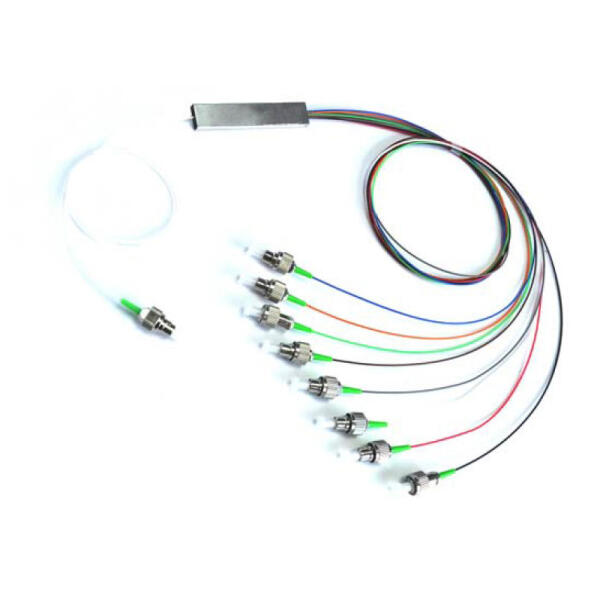

Fiber Optical Planar Lightwave Circuit Splitter

FPLC-xxxxxx-xxx-xx

1xN Splitter

Parameter1×21×41×81×161×321×641×128
Operating Wavelength1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm
Fiber TypeDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specified
Channel Passband (@-0.5dB bandwidth) Min.(nm)3.8 /4.07.2/7.410.3/10.513.5/13.716.5/16.920.5/21.023.8/24.2
Max. Loss Uniformity (dB)0.40.60.81.21.52.02.5
Max. Polarization Dependent Loss (dB)0.10.10.10.20.250.30.4
Return Loss (dB)≦-55≦-55≦-55≦-55≦-55≦-55≦-55
Directivity (dB)≦-55≦-55≦-55≦-55≦-55≦-55≦-55
Temperature Stability (-40～85°C)(dB)≦0.3≦0.3≦0.3≦0.5≦0.5≦0.5≦0.5
Operating Temperature-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C
Storage Temperature-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C



2xN Splitter

Parameter2×22×42×82×162×322×642×128
Operating Wavelength1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm1260～1650nm
Fiber TypeDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specifiedDefault G657A1 or customer specified
Channel Passband (@-0.5dB bandwidth) Min.(nm)3.9/4.27.3/7.610.5/11.014.4/14.617.4/17.921.0/21.524.5/25.0
Max. Loss Uniformity (dB)0.61.01.21.51.82.22.5
Max. Polarization Dependent Loss (dB)0.20.20.20.30.30.30.4
Return Loss (dB)≦-55≦-55≦-55≦-55≦-55≦-55≦-55
Directivity (dB)≦-55≦-55≦-55≦-55≦-55≦-55≦-55
Temperature Stability (-40～85°C)(dB)≦0.4≦0.4≦0.4≦0.5≦0.5≦0.5≦0.5
Operating Temperature-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C
Storage Temperature-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C-40～85°C

* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means Premium Grade

* IL values are measured @1310&1550nm

* IL, PDL, Uniformity values are for “Without connectors”


  • FTTx Deployment
  • Passive Optical Networks ( PON )
  • Access / Metro Network
  • Broadband / CATV System
  • Test Equipment

  • Low Insertion Loss and PDL
  • Uniform Power Splitting
  • Compact Package for High Density application
  • Compliant with Telcordia GR-1209-CORE & GR-1221-CORE
  • Bend Insensitive G.657A1 Fiber
  • High Polarization Extinction Ratio & Excellent Uniformity
  • Supporting Industrial Standard available
