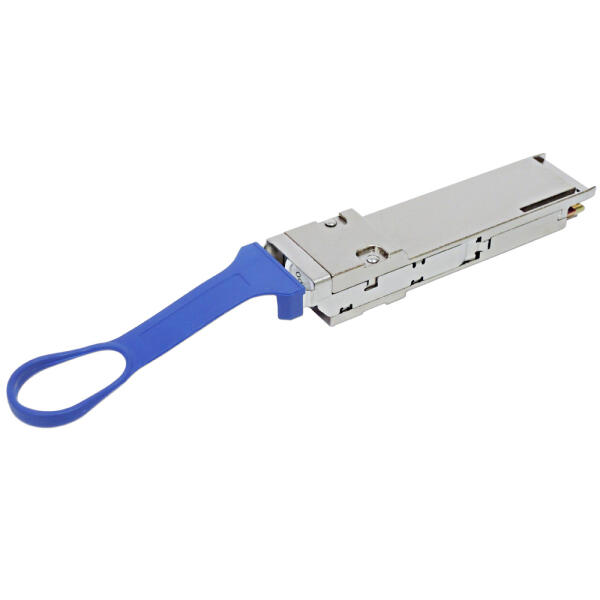

100G QSFP28 Loopback
100G QSFP28 Electrical Passive Loopback
Hot Pluggable, 0~5dB Internal Attenuation, 0~3.5W Power Consumption
| Part Number | Data Rate | Internal Attenuation | Power Consumption | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|
| FQ28-KX-XLB-xx-xx | 100G | 0~5dB | 0~3.5W | -40~85°C | QSFP28-100G-Loopback | |
- Board and System Level Testing
- System Test and Measurement
- Switch / Router Chamber Test
- Power Consumption Validation
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- Electrical Data Rate up to 28Gbps per Lane
- Hot Pluggable QSFP28 footprint
- 2-wire interface for management
- Single 3.3V power supply
- Different Option for Internal Attenuation and Power Consumption
- RoHS compliant
