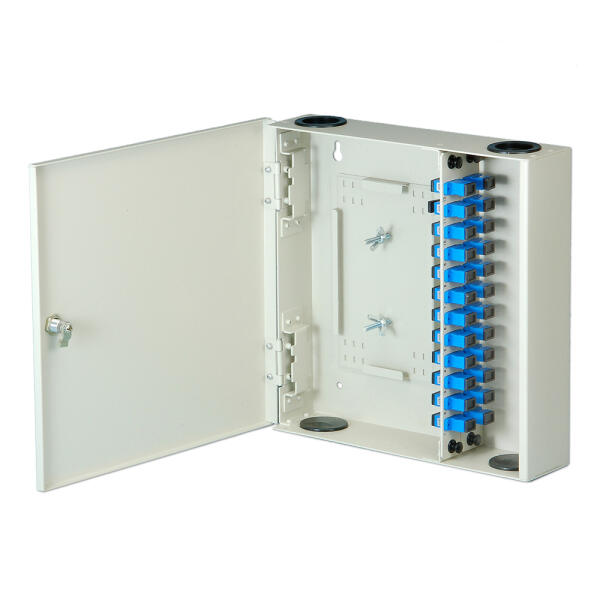

Fiber Distribution Box (FDB)
Wall-Mount
Fiber Distribution Box
8-Port Wall-Mount, Compact Dimension
12-Port Wall-Mount, Very Compact Dimension
24-Port Wall-Mount
48-Port Wall-Mount
96-Port Wall-Mount
| Part Number | Data Rate | Dimension | Adaptor | Material | Splice Tray | Box Body | Full Package | Datasheet |
|---|---|---|---|---|---|---|---|---|
| FFDB-WM-8Ax-xxxxxx | 8port | 150mm x 150mm x 47mm | SC/FC/ST/LC | Aluminum | Replaced with Splice Comb | 0.35kg | 0.45kg | |
| FFDB-WM-12Cx-xxxxxx | 12port | 57mm x 105mm x 155mm | SC/FC/ST/LC | Aluminum | 100mm x 80mm (12 Cores) x 1pcs | 0.4kg | 0.5kg | |
| FFDB-WM-24Ax-xxxxxx | 24port | 250mm x 250mm x 60mm | SC/FC/ST/LC | Aluminum | 160mm x 80mm (12 Cores) x 2pcs | 1.0kg | 1.2kg | |
| FFDB-WM-48Ax-xxxxxx | 48port | 300mm x 300mm x 100mm | SC/FC/ST/LC | Aluminum | 160mm x 100mm (12 Cores) x 4pcs | 1.3kg | 1.6kg | |
| FFDB-WM-96Ax-xxxxxx | 96port | 430mm x 350mm x 150mm | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 Cores) x 4pcs | 3.0kg | 4.0kg | |
- LAN / WAN
- CATV Network
- FTTx Network
- Floor Fiber Distribution
- Easy Installation & Maintenance
- High reliability and stability
- SC / FC / ST / LC Adaptor or Option
- Anti-Rust paint coating
- Compact Dimension
- Cost Effective
