40G QSFP+
40G QSFP+ SRBD

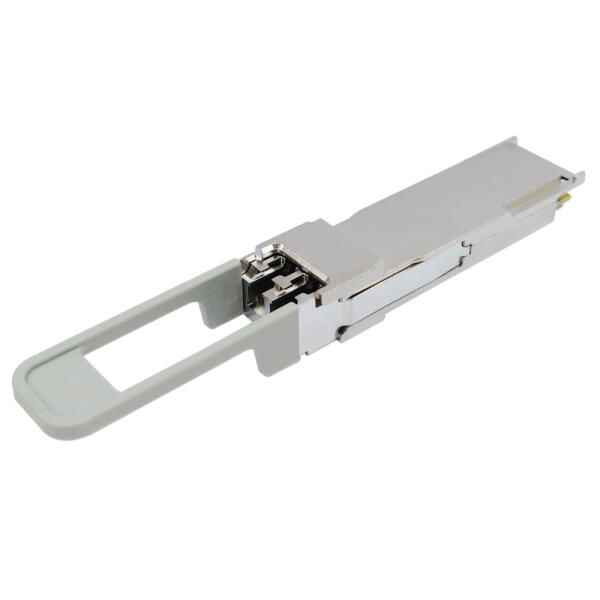

40G QSFP+ SR2-BiDi Transceiver
Hot Pluggable, Duplex BiDi LC, 850 / 908nm VCSEL, MMF 100M
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQFP-IC-C85-X1D | 40G | 850 / 908nm VCSEL | Duplex BiDi LC | OM3 100m OM4 150m | 0~70°C | QSFP+ 40G-SRBD, C-Temp | |
- 40GBASE-SR2 Ethernet @41.3G
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with 40GBASE-SR2 BiDi
- Compliant with SFF-8436 QSFP+ MSA
- Compliant with IEEE 802.3ba-2010 40GbE XLPPI Interface
- Dual wavelength 850 / 908nm VCSEL BiDirectional optical interface
- Up to 11.2Gbps data rate per 10G channel
- Built in quad TX CDR and RX CDR
- Hot Pluggable
- Dual Bidi LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single 3.3V power supply
- Link distance 100m over OM3 fiber and 150m over MM OM4 fiber
- Maximum power consumption 3.5W
- RoHS compliant
