DAC (Direct-Attach Cable)

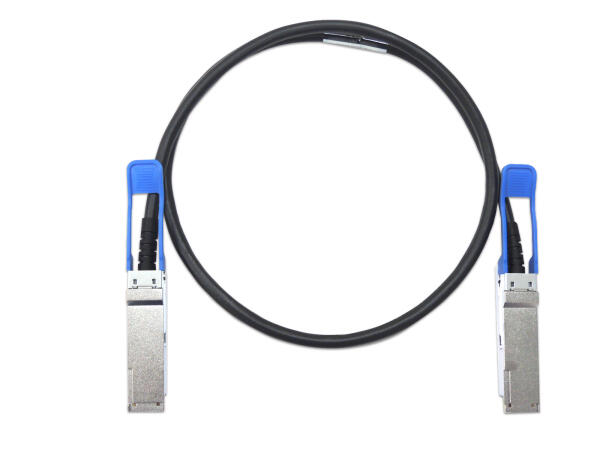

100G QSFP28 DAC

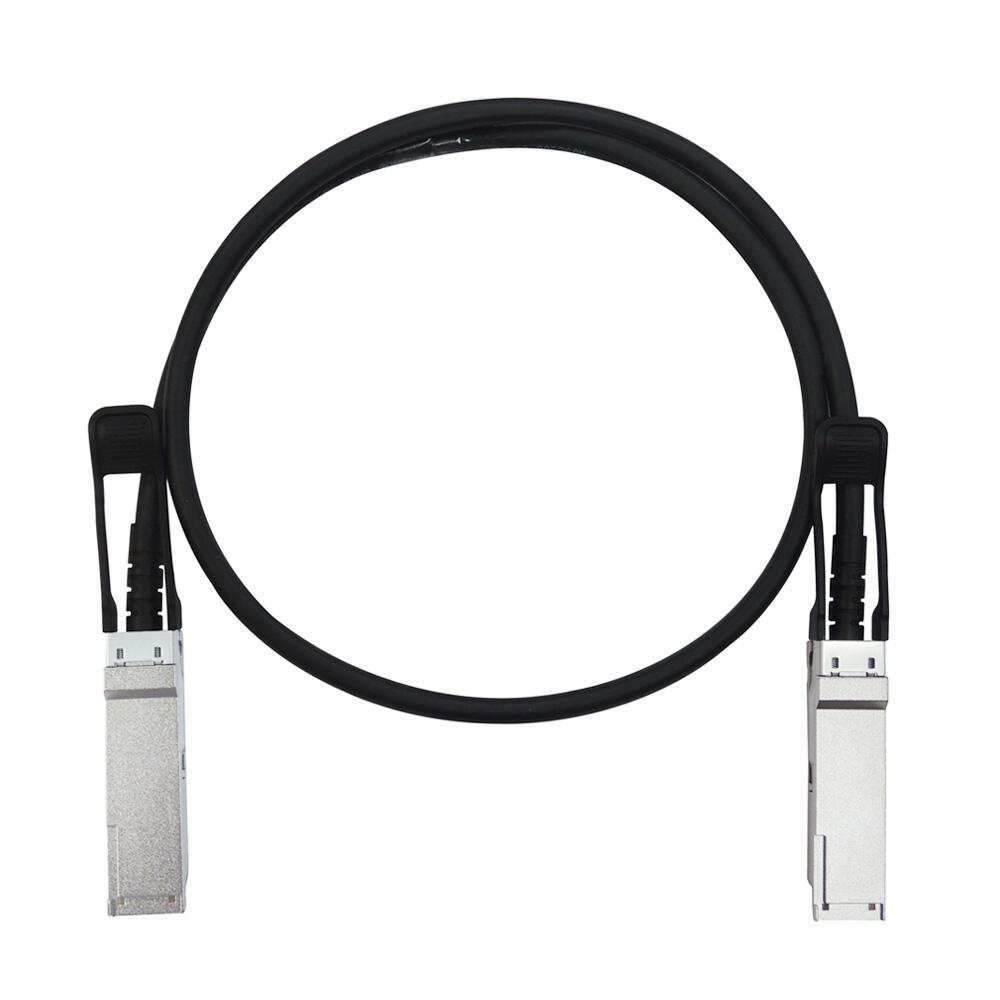

100G QSFP28 Direct Attach Cable (DAC)
Hot Pluggable, Copper Cable, 0.5M~5M
| Data Rate | Connector | Signal | Cable | Cable Specification | Length | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| 100G | QSFP28 to QSFP28 | Passive | Copper | AWG30 | 0.5M~3M | QSFP28-100G-DAC | |
| 100G | QSFP28 to QSFP28 | Passive | Copper | AWG28 | 2.5M~3M | QSFP28-100G-DAC | |
| 100G | QSFP28 to QSFP28 | Passive | Copper | AWG26 | 3M~5M | QSFP28-100G-DAC | |
| 100G | 4*SFP28 | Passive | Copper | AWG30 | 1M~3M | QSFP28-4*SFP28-DAC | |
| 100G | 4*SFP28 | Passive | Copper | AWG26 | 3M~5M | QSFP28-4*SFP28-DAC |
- 40G / 100GBASE Ethernet
- InfiniBand 4x FDR-10 , 4x FDR, 4x EDR
- Data Center & Storage
- Support InfiniBand 4x FDR-10, 4xFDR, 4xEDR
- Datacom Telecom Switch & Router
- Compliant with IEEE802.3bj 100GBASE-CR4, IEEE802.3ba 40GBASE-CR4
- Compliant with SFF-8665 QSFP28 MSA
- Support 40G / 100G Ethernet
- Support InfiniBand 4x FDR-10, 4xFDR, 4xEDR
- Hot Pluggable
- 2 wire interface for management
- Single +3.3V power supply
- Link distance up to 5m Enhanced EMI / EMC performance
- RoHS Compliant
