10G SFP+
10G SFP+ DWDM
10G SFP+ DWDM

10G SFP+ DWDM

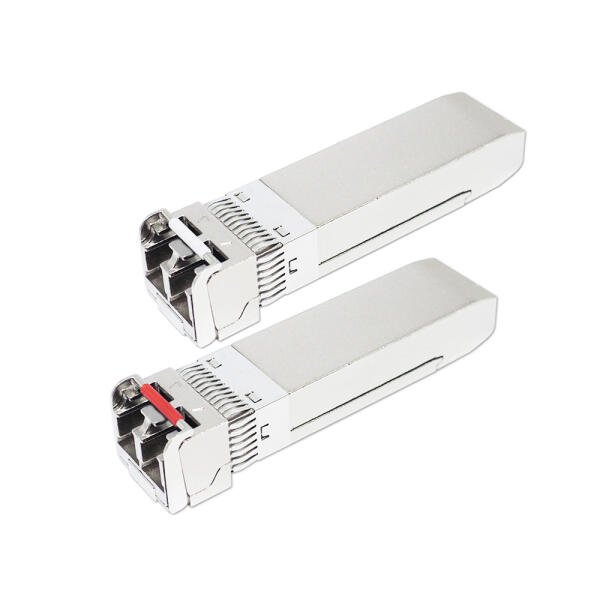

10G DWDM SFP+ Transceiver
Hot Pluggable, Duplex LC, DWDM EML, Single Mode, 40KM~100KM


Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
FSPP-H7-Dxx-40D10G100GHz DWDM EMLDuplex LCSM 40km0~70°CSFP+10G-DWDM-40km
FSPP-H7-Dxx-40Di10G100GHz DWDM EMLDuplex LCSM 40km-40~85°CSFP+10G-DWDM-40km, I-Temp
FSPP-H7-Dxx-80D10G100GHz DWDM EMLDuplex LCSM 80km0~70°CSFP+10G-DWDM-80km
FSPP-H7-Dxx-80Di10G100GHz DWDM EMLDuplex LCSM 80km-40~85°CSFP+10G-DWDM-80km, I-Temp
FSPP-H7-Dxxx-40D10G50GHz DWDM EMLDuplex LCSM 40km0~70°CSFP+10G-DWDM-40km-50GHz
FSPP-H7-Dxxx-40Di10G50GHz DWDM EMLDuplex LCSM 40km-40~85°CSFP+10G-DWDM-40km-50GHz,
I-Temp
FSPP-H7-Dxxx-80D10G50GHz DWDM EMLDuplex LCSM 80km0~70°CSFP+10G-DWDM-80km-50GHz
FSPP-H7-Dxxx-80Di10G50GHz DWDM EMLDuplex LCSM 80km-40~85°CSFP+10G-DWDM-80km-50GHz,
I-Temp
FSPP-H7-Dxx-A0D10G100GHz DWDM EMLDuplex LCSM 100km0~70°CSFP+10G-DWDM-100km, C-Temp
FSPP-H7-Dxx-A0Di10G100GHz DWDM EMLDuplex LCSM 100km-40~85°CSFP+10G-DWDM-100km, I-Temp

  • 10GBASE Ethernet @10.3125G
  • Fiber Channel 800-SM-LC-L 8GFC @8.5G, 1200-SM-LL-L 10GFC @10.51875G
  • SONET OC-192 & SDH STM-64 @9.953G
  • CPRI Option #7 @9.83G, #8 @10.1376G
  • OTN OTU2 @10.7G, OTU2e @11.09G, OTU2f @11.32G
  • 10G DWDM Networks

  • Compliant with IEEE802.3ae 10GBASE-ER/EW (SFP+10G-DWDM-40km)
  • Compliant with 10GBASE-ZR/ZW (SFP+10G-DWDM-80km and 100km)
  • Compliant with CPRI Option 7, 8
  • Compliant with SFF-8431, SFF-8432 SFP+ MSA
  • Support 8.5Gb/s to 11.32Gb/s Multi-Rate
  • Hot Pluggable
  • 100GHz ITU Grid, C-Band DWDM cooled EML laser transmitter
  • APD receiver
  • Duplex LC connector
  • 2-wire interface for management and diagnostic monitor compliant with SFF-8472
  • Single +3.3V power supply
  • Link distance 40km~100km over SM fiber
  • RoHS Compliant
