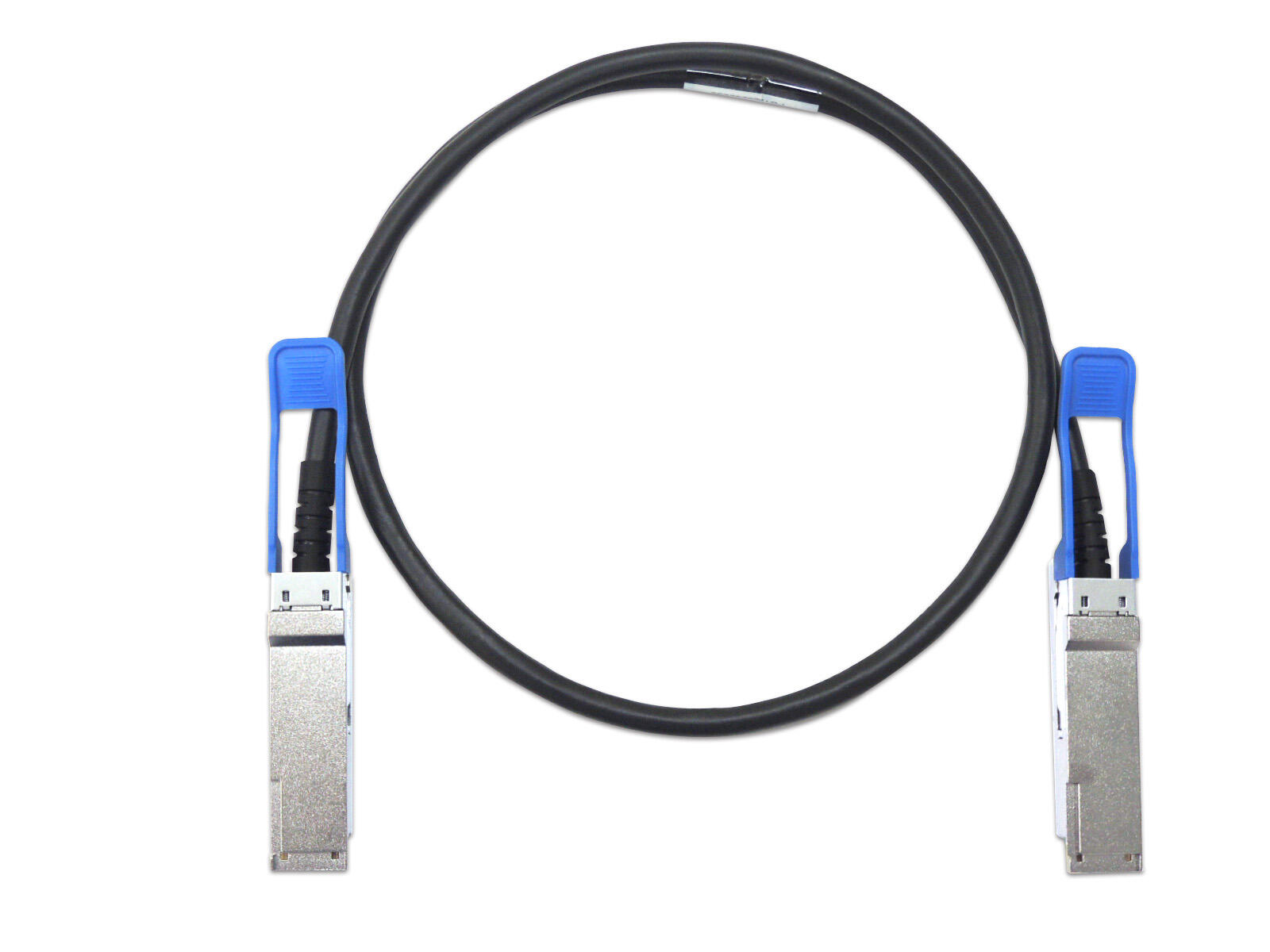

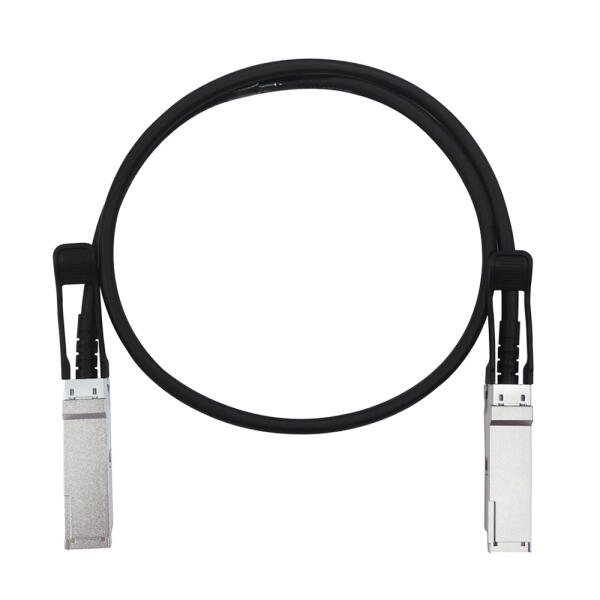

40G QSFP+ DAC
40G QSFP+ Direct Attach Cable (DAC)
Hot Pluggable, Copper Cable, 0.5M~7M
| Data Rate | Connector | Signal | Cable | Cable Specification | Length | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| 40G | QSFP+ | Passive | Copper | AWG30 | 0.5M~3M | QSFP+ 40G-DAC | |
| 40G | QSFP+ | Passive | Copper | AWG26 | 4M~7M | QSFP+ 40G-DAC | |
| 40G | 4*SFP+ | Passive | Copper | AWG30 | 1M~3M | QSFP-4*SFP-DAC | |
| 40G | 4*SFP+ | Passive | Copper | AWG26 | 4M~5M | QSFP-4*SFP-DAC | |
- 40GBASE Ethernet
- InfiniBand SDR, DDR, QDR, FDR-10
- Data Center & Storage
- Datacom / Telecom Switch & Router
- Compliant with IEEE802.3ba 40GBASE-CR4
- Compliant with SFF-8436 QSFP+ MSA
- Support 40G Ethernet
- Support InfiniBand SDR, DDR, QDR & FDR-10
- 4 Independent Duplex Lanes
- Hot Pluggable
- 2-wire interface for management
- Single +3.3V power supply
- Link distance up to 7m
- Enhanced EMI / EMC performance
- RoHS Compliant
