Indoor Patch-cord/Cable

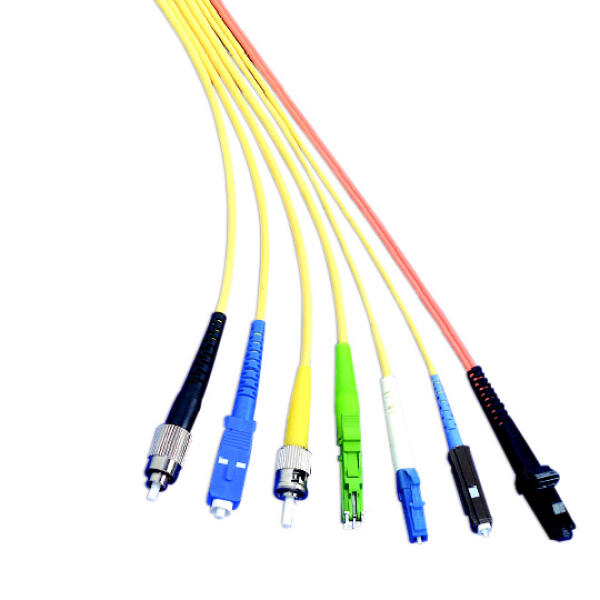

General Patch-cord
Fiber Optical Cable Patch-cord
| Fiber Type | Single-mode | Multi-mode | ||
|---|---|---|---|---|
| Nominal Fiber OD | 125.3 ~126.5μm | 126 ~ 127.5μm | ||
| Connector Type | SC, FC, ST, E2000, LX.5, LC, MU, CS | MTRJ | SC, FC, ST, E2000, LC, MU | MTRJ |
| Insertion Loss ( Typical )( dB ) | 0.2 | 0.5 | 0.3 | 0.45 |
| Insertion Loss ( Max. )( dB ) | 0.3 | 0.8 | 0.5 | 0.7 |
| Return Loss ( dB ) PC | ≦-40 | ≦-30 | - | - |
| Return Loss ( dB ) UPC | ≦-50 | - | - | - |
| Return Loss ( dB ) APC | ≦-60 | - | - | - |
| Mating Durability (500 cycles) | ≦ 0.2dB | ≦ 0.2dB | ||
| Temperature Stability | ≦ 0.3dB | ≦ 0.3dB | ||
| Operating Temperature °C | -40°C ~ 70°C | -40°C ~ 70°C | ||
| Storage Temperature °C | -40°C ~ 85°C | -40°C ~ 85°C |
- FTTH / FTTB
- Telecommunication
- Testing instruments
- LAN / WAN
- CATV
- Low Insertion Loss & Return Loss
- Single Mode & Multi-Mode
- Physical contact polishing mode
- High Reliability & Stability
- Compliant with Bellcore GR-326-CORE
