40G QSFP+
40G QSFP+ SR4

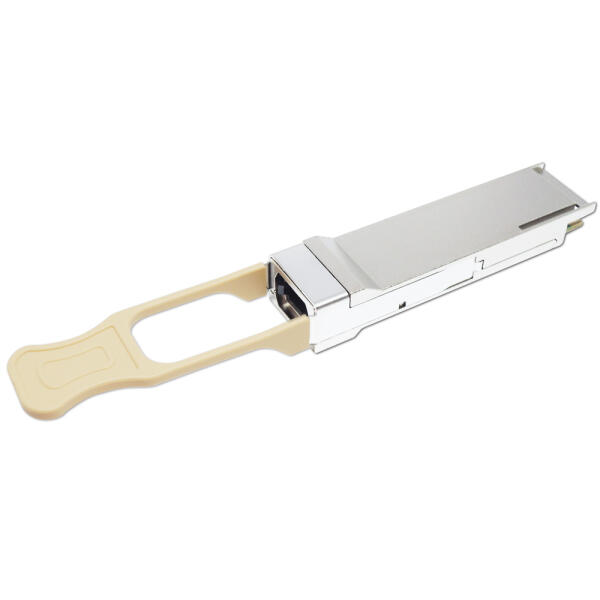

40G QSFP+ SR4 Transceiver
Hot Pluggable, MPO / MTP, 850nm VCSEL, Multi-Mode, OM3 for 100M / OM4 for 150M
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQFP-I9-M85-X1D | 40G | 850nm | MPO/MTP | OM3 100m OM4 150m | 0~70°C | QSFP+ 40G-SR4 | |
| FQFP-I9-M85-X1Di | 40G | 850nm | MPO/MTP | OM3 100m OM4 150m | -40~85°C | QSFP+ 40G-SR4, I-Temp | |
- 40Gb Ethernet
- OTN OTU3 @43.01G, OTU3e2 @44.58G
- Breakout to 4 x 10GBASE-SR Ethernet
- InfiniBand QDR interconnects
- Data Center & Storage
- Datacom / Telecom Switch & Router
- Compliant with IEEE802.3ba 40GBASE-SR4
- Compliant with SFF-8436 QSFP+ MSA
- Support InfiniBand QDR
- 4 independent full-duplex channels
- Up to 11.2Gbps data rate per channel
- Hot Pluggable
- 850nm VCSEL array transmitter
- MPO-12 receptacle connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single 3.3V power supply
- Link distance 100m over MM OM3 fiber and 150m over MM OM4 fiber
- RoHS Compliant
