100G QSFP28
100G-QSFP28-BIDI-80

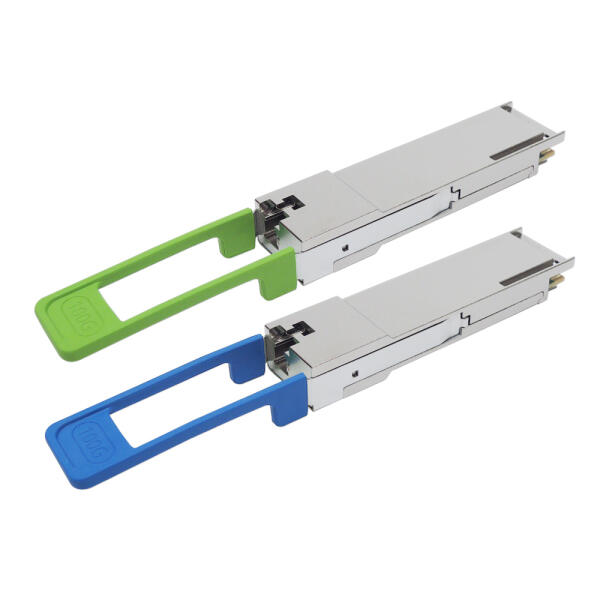

100G QSFP28 ZR4 BiDi Transceiver
Hot Pluggable, BiDi LC, LWDM EML, SMF 80KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQ28-K8-L73-80D | 100G | Tx LWDM 1273.55~1286.66nm EML / Rx 1295.56~1309.14nm | BiDi LC | SM 80km | 0~70°C | QSFP28-100G-BX80-1273, C-Temp | |
| FQ28-K8-L95-80D | 100G | Tx LWDM 1295.56~1309.14nm EML / Rx 1273.55~1286.66nm | BiDi LC | SM 80km | 0~70°C | QSFP28-100G-BX80-1295, C-Temp | |
- 100GBASE-ZR4 Ethernet
- Infiniband QDR and DDR
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compatible with IEEE802.3ba 100GBASE-ER4
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- 4CH LWDM MUX / DEMUX design
- Data Rate up to 25.78125Gbps per Lane
- Built in Tx CDR and Rx CDR
- O-Band LWDM 1273.55~1286.66nm EML transmitter
- SOA + PIN receiver
- Simplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Operating Temperature 0~70°C
- Link distance 80km over SM fiber with FEC
- Maximum Power consumption 5W
100G QSFP28-BIDI 80KM optical module supports a transmission distance of 80km and is fully compatible with most brand hosts. Our transceivers are ideal for 100G Ethernet networks, data center networks, artificial intelligence applications and more.
