1.25G CSFP

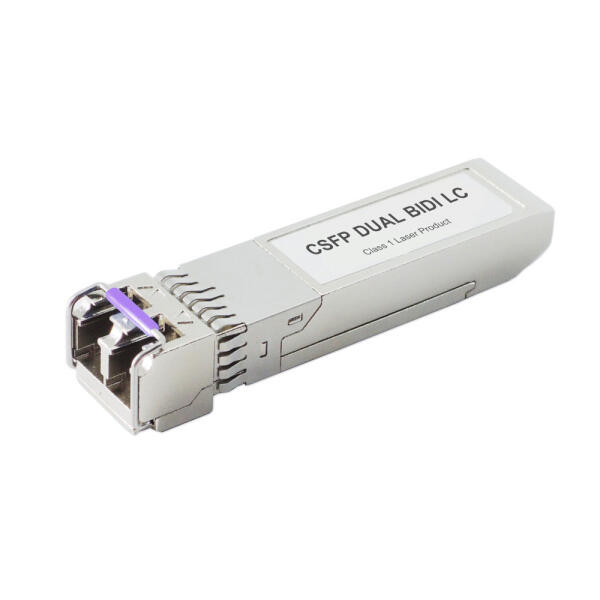

1.25G CSFP-Duplex BiDi LC
1.25G CSFP 1000BX Compact 2CH BiDi Transceiver
Hot Pluggable, Duplex BiDi LC, 1310nm / 1490nm / 1550nm, SMF 20KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSFP-CC-S34-20D | 1.25G | Tx1310nm / Rx1490nm | Duplex BiDi LC | SM 20km | 0~70°C | CSFP-1000BX20-U3 | |
| FSFP-CC-S34-20Di | 1.25G | Tx1310nm / Rx1490nm | Duplex BiDi LC | SM 20km | -40~85°C | CSFP-1000BX20-U3, I-Temp | |
| FSFP-CC-S43-20D | 1.25G | Tx1490nm / Rx1310nm | Duplex BiDi LC | SM 20km | 0~70°C | CSFP-1000BX20-D4 | |
| FSFP-CC-S43-20Di | 1.25G | Tx1490nm / Rx1310nm | Duplex BiDi LC | SM 20km | -40~85°C | CSFP-1000BX20-D4, I-Temp | |
| FSFP-CC-S53-20D | 1.25G | Tx1550nm / Rx1310nm | Duplex BiDi LC | SM 20km | 0~70°C | CSFP-1000BX20-D5 | |
| FSFP-CC-S53-20Di | 1.25G | Tx1550nm / Rx1310nm | Duplex BiDi LC | SM 20km | -40~85°C | CSFP-1000BX20-D5, I-Temp | |
- Gigabit Ethernet 1000BASE-BX10 @1.25G
- Fiber Channel 1GFC @1.0625G
- Compliant with IEEE802.3ah 1000BASE-BX10-D
- Compliant with Fiber Channel 100-SM-LZ-L
- Compliant with CSFP MSA Option 2
- Hot Pluggable
- 1310nm/1490nm /1550nm laser transmitter
- Dual BiDi LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 20km over SM fiber for each channel
- RoHS Compliant
