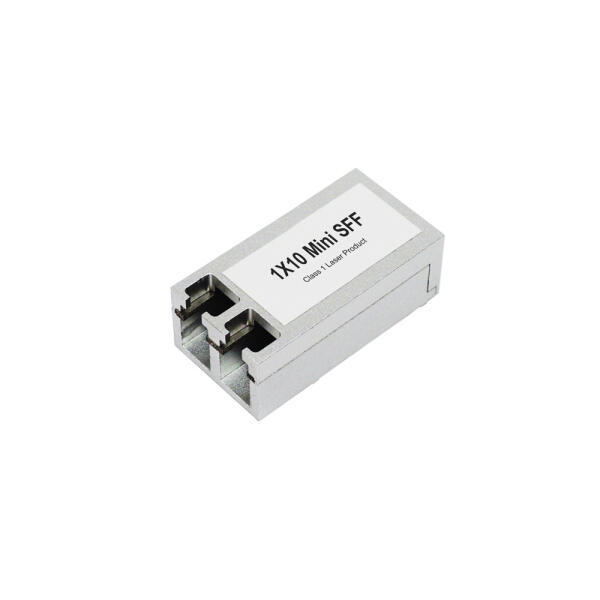

1.25G 1x10 Mini SFF
1.25G 1x10 Mini SFF 1000BASE Duplex Transmitter / Receiver Transceiver
Hot Pluggable, Duplex LC, 1260~1620nm / 1310nm, MMF OM2 300M
| Part Number | Data Rate | Wavelength | Connector | Distance | Data Output / Input | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|---|
| FSFM-CT-M13-X3D | 1.25G | 1310nm | Duplex LC | OM2 300m | AC-coupled CML | 0~70°C | MiniSFF 1x10 1.25G Dual Tx OM2 300m, C-Temp | |
| FSFM-CT-M13-X3Di | 1.25G | 1310nm | Duplex LC | OM2 300m | AC-coupled CML | -40~85°C | MiniSFF 1x10 1.25G Dual Tx OM2 300m, I-Temp | |
| FSFM-CQ-M13-X3D | 1.25G | 1260nm~1620nm | Duplex LC | OM2 300m | AC-coupled CML | 0~70°C | MiniSFF 1x10 1.25G Dual Rx OM2 300m, C-Temp | |
| FSFM-CQ-M13-X3Di | 1.25G | 1260nm~1620nm | Duplex LC | OM2 300m | AC-coupled CML | -40~85°C | MiniSFF 1x10 1.25G Dual Rx OM2 300m, I-Temp | |
- Gigabit Ethernet 1000BASE @1.25G
- Fiber Channel 1GFC @1.0625G
- Compliant with IEEE802.3z Gigabit Ethernet
- Compatible with Fiber Channel 100-M5-SN-I
- 1x10 Mini SFF Footprint
- Aluminum alloy case; Screw mount
- Surface mount I/O pins for high-speed signal integrity
- 1310nm FP laser transmitter (FSFM-CT-M13-X3D)
- PIN-TIA receiver (FSFM-CQ-M13-X3D)
- Duplex LC connector
- AC-coupled CML Differential inputs (FSFM-CT-M13-X3D)
- AC-coupled CML Differential outputs (FSFM-CQ-M13-X3D)
- Single +3.3V power supply
- Link distance 300m over MM OM2 fiber
- RoHS Compliant
