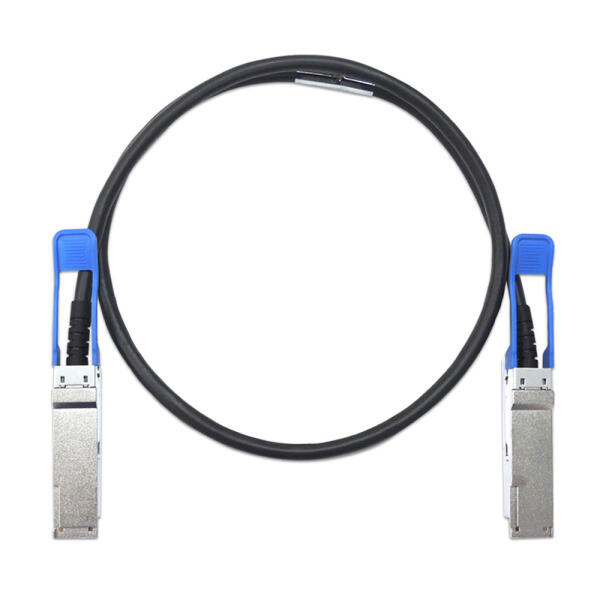

DAC (Direct-Attach Cable)
10G SFP+ DAC
10G SFP+ Direct Attach Cable (DAC)
Hot Pluggable, Copper Cables, Passive 0.5M~10M
| お問い合わせカート | Specification | Applications | Features | Download |
|---|---|---|---|---|
| Data RateConnectorSignalCableCable SpecificationLengthRemarkDatasheet10GSFP+ to SFP+PassiveCopperAWG300.5M~3MSFP+ 10G-DAC10GSFP+ to SFP+PassiveCopperAWG243M~10MSFP+ 10G-DAC | 1000BASE ~ 10GBASE Ethernet1G/2G/4G/8G Fiber ChannelInfiniBand SDR, DDR, QDR, FDR-10Data Center & StorageDatacom / Telecom Switch & Router | Compliant with 10GBASE-CRCompliant with SFF-8431, 8432 SFP+ MSASupport 1G~10G EthernetSupport 1G/2G/4G/8G Fiber ChannelSupport InfiniBand SDR, DDR, QDR & FDR-10Hot Pluggable2-wire interface for managementSingle +3.3V power supplyLink distance up to 10mEnhanced EMI / EMC performanceRoHS Compliant | ||
| Data RateConnectorSignalCableCable SpecificationLengthRemarkDatasheet25GSFP28 to SFP28PassiveCopperAWG300.5M~3MSFP28-25G-DAC25GSFP28 to SFP28PassiveCopperAWG282.5M~3MSFP28-25G-DAC25GSFP28 to SFP28PassiveCopperAWG263M~5MSFP28-25G-DAC | 1000BASE ~ 25GBASE Ethernet1G/2G/4G/8G/16G Fiber ChannelInfiniBand SDR, DDR, QDR, FDR-10, FDR, EDRData Center & StorageDatacom / Telecom Switch & Router | Compliant with IEEE802.3by 25GBASE-CRCompliant with SFF-8402 SFP28 and SFF-8432 MSASupport 1G~25G EthernetSupport 1G/2G/4G/8G/16G Fiber ChannelSupport InfiniBand SDR, DDR, QDR, FDR, EDRHot Pluggable2-wire interface for managementSingle +3.3V power supplyLink distance up to 5mEnhanced EMI / EMC performanceRoHS Compliant | ||
| Data RateConnectorSignalCableCable SpecificationLengthRemarkDatasheet40GQSFP+PassiveCopperAWG300.5M~3MQSFP+ 40G-DAC40GQSFP+PassiveCopperAWG264M~7MQSFP+ 40G-DAC40G4*SFP+PassiveCopperAWG301M~3MQSFP-4*SFP-DAC40G4*SFP+PassiveCopperAWG264M~5MQSFP-4*SFP-DAC | 40GBASE EthernetInfiniBand SDR, DDR, QDR, FDR-10Data Center & StorageDatacom / Telecom Switch & Router | Compliant with IEEE802.3ba 40GBASE-CR4Compliant with SFF-8436 QSFP+ MSASupport 40G EthernetSupport InfiniBand SDR, DDR, QDR & FDR-104 Independent Duplex LanesHot Pluggable2-wire interface for managementSingle +3.3V power supplyLink distance up to 7mEnhanced EMI / EMC performanceRoHS Compliant | ||
| Data RateConnectorSignalCableCable SpecificationLengthRemarkDatasheet100GQSFP28 to QSFP28PassiveCopperAWG300.5M~3MQSFP28-100G-DAC100GQSFP28 to QSFP28PassiveCopperAWG282.5M~3MQSFP28-100G-DAC100GQSFP28 to QSFP28PassiveCopperAWG263M~5MQSFP28-100G-DAC100G4*SFP28PassiveCopperAWG301M~3MQSFP28-4*SFP28-DAC 100G4*SFP28PassiveCopperAWG263M~5MQSFP28-4*SFP28-DAC | 40G / 100GBASE EthernetInfiniBand 4x FDR-10 , 4x FDR, 4x EDRData Center & StorageSupport InfiniBand 4x FDR-10, 4xFDR, 4xEDRDatacom Telecom Switch & Router | Compliant with IEEE802.3bj 100GBASE-CR4, IEEE802.3ba 40GBASE-CR4Compliant with SFF-8665 QSFP28 MSASupport 40G / 100G EthernetSupport InfiniBand 4x FDR-10, 4xFDR, 4xEDRHot Pluggable2 wire interface for managementSingle +3.3V power supplyLink distance up to 5m Enhanced EMI / EMC performanceRoHS Compliant |
