622M SFP

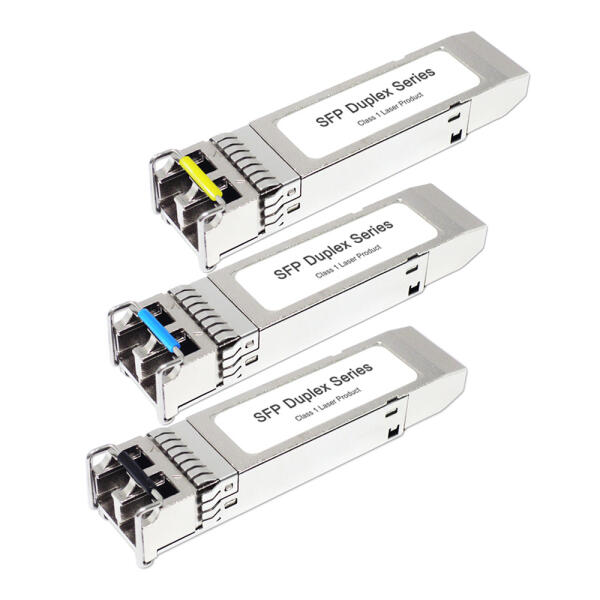

622M SFP-DUAL
622M SFP-DUAL

622M SFP-Duplex

622M STM-4/OC-12 SFP Transceiver
Hot Pluggable, Duplex LC, 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 550M~160KM


Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
FSFP-B7-M85-X5D622M850nmDuplex LCOM2 550m0~70°CSFP-622M-MM550m
FSFP-B7-M85-X5Di622M850nmDuplex LCOM2 550m-40~85°CSFP-622M-MM550m, I-Temp
FSFP-B7-S13-20D622M1310nmDuplex LCSM 20km0~70°CSFP-622M-20km
FSFP-B7-S13-20Di622M1310nmDuplex LCSM 20km-40~85°CSFP-622M-20km, I-Temp
FSFP-B7-S13-40D622M1310nmDuplex LCSM 40km0~70°CSFP-622M-40km
FSFP-B7-S13-40Di622M1310nmDuplex LCSM 40km-40~85°CSFP-622M-40km, I-Temp
FSFP-B7-S13-60D622M1310nmDuplex LCSM 60km0~70°CSFP-622M-60km
FSFP-B7-S13-60Di622M1310nmDuplex LCSM 60km-40~85°CSFP-622M-60km, I-Temp
FSFP-B7-S15-40D622M1550nmDuplex LCSM 40km0~70°CSFP-622M-1550-40km
FSFP-B7-S15-40Di622M1550nmDuplex LCSM 40km-40~85°CSFP-622M-1550-40km, I-Temp
FSFP-B7-S15-80D622M1550nmDuplex LCSM 80km0~70°CSFP-622M-80km
FSFP-B7-S15-80Di622M1550nmDuplex LCSM 80km-40~85°CSFP-622M-80km, I-Temp
FSFP-B7-S15-A0D622M1550nmDuplex LCSM 100km0~70°CSFP-622M-100km
FSFP-B7-S15-A0Di622M1550nmDuplex LCSM 100km-40~85°CSFP-622M-100km, I-Temp
FSFP-B7-S15-A2D622M1550nmDuplex LCSM 120km0~70°CSFP-622M-120km
FSFP-B7-S15-A2Di622M1550nmDuplex LCSM 120km-40~85°CSFP-622M-120km, I-Temp
FSFP-B7-S15-A4D622M1550nmDuplex LCSM 140km0~70°CSFP-622M-140km
FSFP-B7-S15-A6D622M1550nmDuplex LCSM 160km0~70°CSFP-622M-160km

  • SONET OC-12 / SDH STM-4 @622M

  • Compliant with SONET OC-12 IR-1 and SDH STM-4 S4.1
  • Compliant with INF-8074i SFP MSA
  • Hot Pluggable
  • 850nm/1310nm/1550nm laser transmitter
  • Duplex LC connector
  • 2-wire interface for management and diagnostic monitor compliant with SFF-8472
  • Single +3.3V power supply
  • Link distance 550m~160km over MM/SM fiber
  • RoHS Compliant
