40G QSFP+
40G QSFP+ ZR4
40G QSFP+ ZR4 Lite Transceiver
Hot Pluggable, Duplex LC, CWDM EML, Single Mode 60KM

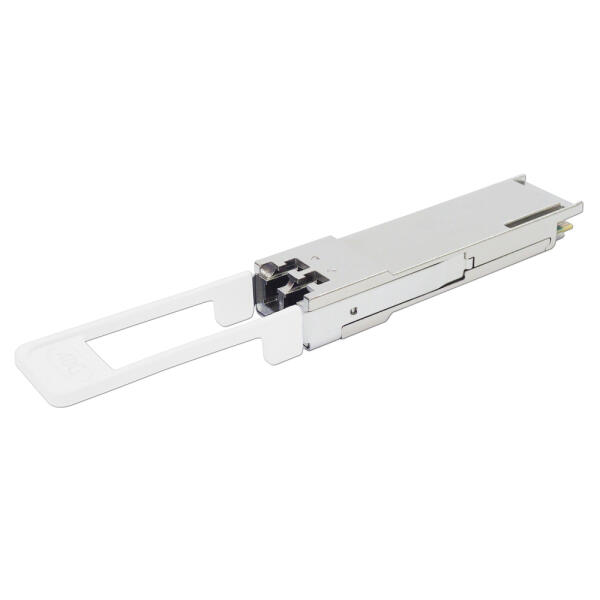

40G QSFP+ ZR4 Transceiver
Hot Pluggable, Duplex LC, LAN-WDM DFB, Single Mode, 80KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQFP-I7-C13-60D | 40G | CWDM EML | Duplex LC | SM 60km | 0~70°C | QSFP+40G-ZR4 Lite 60km | |
| FQFP-I7-C13-60Di | 40G | CWDM EML | Duplex LC | SM 60km | -40~85°C | QSFP+40G-ZR4 Lite 60km, I-Temp | |
| FQFP-I7-L13-80D | 40G | LWDM DFB | Duplex LC | SM 80km | 0~70°C | QSFP+40G-ZR4, C-Temp | |
| FQFP-I7-L13-80Di | 40G | LWDM DFB | Duplex LC | SM 80km | -40~85°C | QSFP+ 40G-ZR4, I-Temp | |
- 40GBASE-ZR4 Ethernet
- OTN OTU3 @43.01G, OTU3e2 @44.58G
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compatible with IEEE802.3bm 40GBASE-ER4
- Compliant to SFF-8436 QSFP+ MSA
- Supports QDR / DDR InfiniBand
- 4CH LWDM MUX / DEMUX design
- Data Rate up to 11.2Gbps per Lane
- Hot Pluggable
- O-Band LWDM DFB transmitter
- APD receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single 3.3V power supply
- Link distance 60km~80km over SM fiber
- Maximum Power consumption 4.5W
- RoHS compliant
