10G XFP

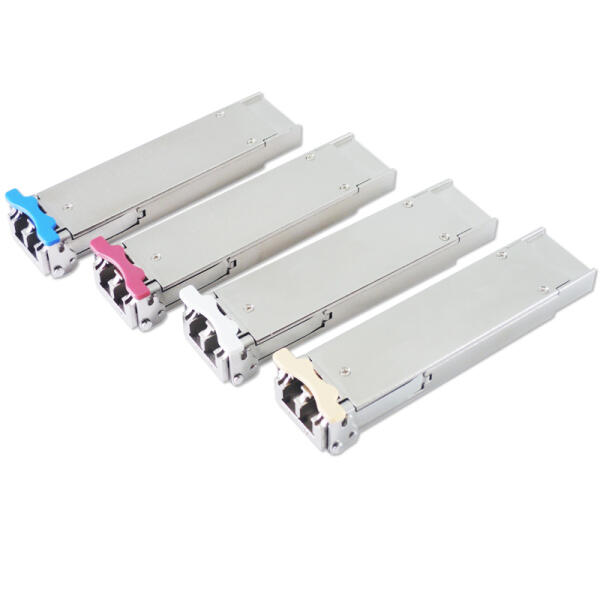

10G XFP-Duplex

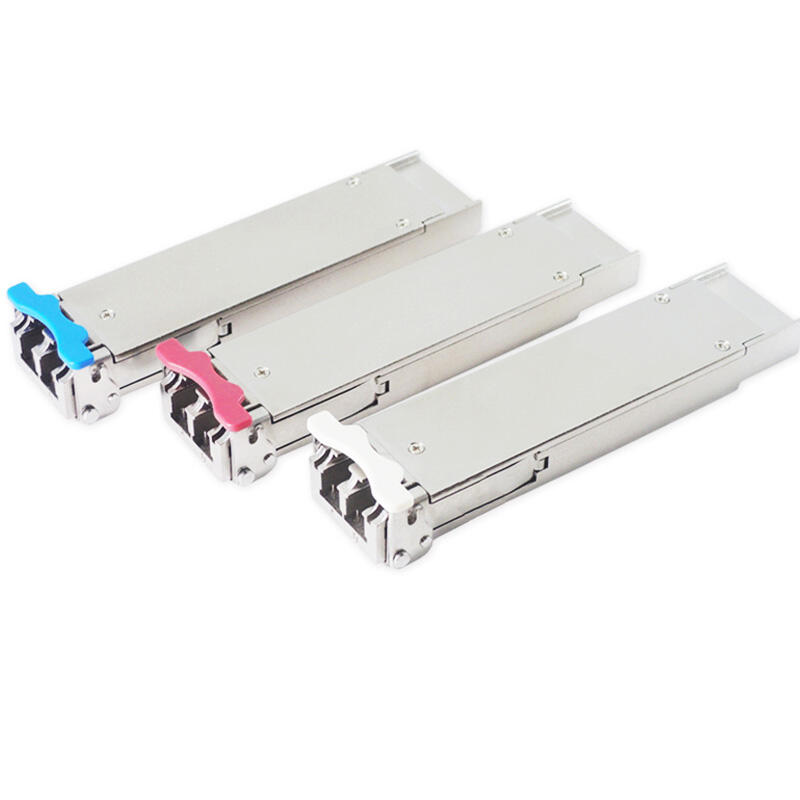

10G XFP Transceiver
Hot Pluggable, Duplex LC, 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 300M~120KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FXFP-H7-M85-X3D | 10G | 850nm | Duplex LC | OM3 300m | 0~70°C | XFP-10G-SR | |
| FXFP-H7-S13-10D | 10G | 1310nm | Duplex LC | SM 10km | 0~70°C | XFP-10G-LR | |
| FXFP-H7-S13-10Di | 10G | 1310nm | Duplex LC | SM 10km | -40~85°C | XFP-10G-LR, I-Temp | |
| FXFP-H7-S15-40D | 10G | 1550nm | Duplex LC | SM 40km | 0~70°C | XFP-10G-ER | |
| FXFP-H7-S15-40Di | 10G | 1550nm | Duplex LC | SM 40km | -40~85°C | XFP-10G-ER, I-Temp | |
| FXFP-H7-S15-80D | 10G | 1550nm | Duplex LC | SM 80km | 0~70°C | XFP-10G-ZR | |
| FXFP-H7-S15-80Di | 10G | 1550nm | Duplex LC | SM 80km | -40~85°C | XFP-10G-ZR, I-Temp | |
| FXFP-H7-S15-A0D | 10G | 1550nm | Duplex LC | SM 100km | 0~70°C | XFP-10G-ZR100 | |
| FXFP-H7-S15-A0Di | 10G | 1550nm | Duplex LC | SM 100km | -40~85°C | XFP-10G-ZR100,I-Temp | |
| FXFP-H7-S15-A2D | 10G | 1550nm | Duplex LC | SM 120km (with OA) | 0~70°C | XFP-10G-EZR120 | |
| FXFP-H7-S13-10D-L | 10G | 1310nm | Duplex LC | SM 10km | 0~70°C | XFP-10G-LR Low Power Consumption | |
| FXFP-H7-S15-40D-L | 10G | 1550nm | Duplex LC | SM 40km | 0~70°C | XFP-10G-ER Low Power Consumption | |
| FXFP-H7-S15-80D-L | 10G | 1550nm | Duplex LC | SM 80km | 0~70°C | XFP-10G-ZR Low Power Consumption, Rx Protection | |
- 10GBASE Ethernet
- 1200-SM-LL-L 10G Fiber Channel
- SONET OC-192 & SDH STM-64 @9.953Gbps
- OC192 over FEC @10.709Gbps
- 10GbE over G.709 @11.09Gbps
- Compliant with IEEE802.3ae 10GBase standard
- Compliant with 10G 1200-SM-LL-L Fiber Channel
- Compliant with XFP MSA INF-8077i
- Support 9.95Gb/s to 11.3Gb/s multi-rates
- Hot-pluggable XFP footprint
- 850nm/1310nm/1550nm Laser transmitter
- Duplex LC connector
- Single +3.3V power supply
- Built-in digital diagnostic function
- Link length for 300m~10km over MM/SM fiber
- RoHS compliant
