10G XFP

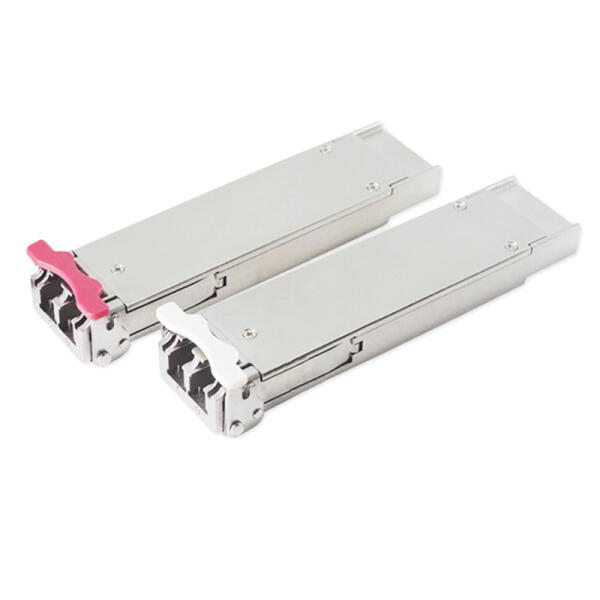

10G XFP-DWDM
10G DWDM XFP Transceiver
Hot Pluggable, Duplex LC, DWDM EML, Single Mode, 40KM~100KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FXFP-H7-Dxx-40D | 10G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 40km | 0~70°C | XFP-10G-DWDMxx-40km | |
| FXFP-H7-Dxx-40Di | 10G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 40km | -40~85°C | XFP-10G-DWDMxx-40km, I-Temp | |
| FXFP-H7-Dxx-80D | 10G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 80km | 0~70°C | XFP-10G-DWDMxx-80km | |
| FXFP-H7-Dxx-80Di | 10G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 80km | -40~85°C | XFP-10G-DWDMxx-80km, I-Temp | |
| FXFP-H7-Dxx-A0D | 10G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 100km | 0~70°C | XFP-10G-DWDMxx-100km |
- 10GBAS Ethernet @10.3125G
- Fiber Channel 1200-SM-LL-L 10GFC @10.51875G
- SONET OC-192 & SDH STM-64 @9.953G
- CPRI Option #8 @10.1376G
- OTN OTU2 @10.7G, OTU2e @11.09G, OTU2f @11.32G
- 10G DWDM Networks
- Compliant with IEEE802.3ae 10GBASE Ethernet
- Compliant with CPRI Option 8
- Compliant with INF-8077i XFP MSA
- Data Rate 9.953Gb/s to 11.32Gb/s
- Hot Pluggable XFP footprint
- 100GHz ITU Grid, cooled C-Band DWDM EML laser transmitter
- Duplex LC connector
- No Reference Clock required
- 2-wire interface for management and diagnostic monitor
- Dual +3.3V and 5.0V power supply
- Link distance 40km~100km over SM fiber
- Maximum Power consumption 3.5W
- RoHS Compliant
