100G QSFP28
100G-QSFP28-BIDI-4WDM-20

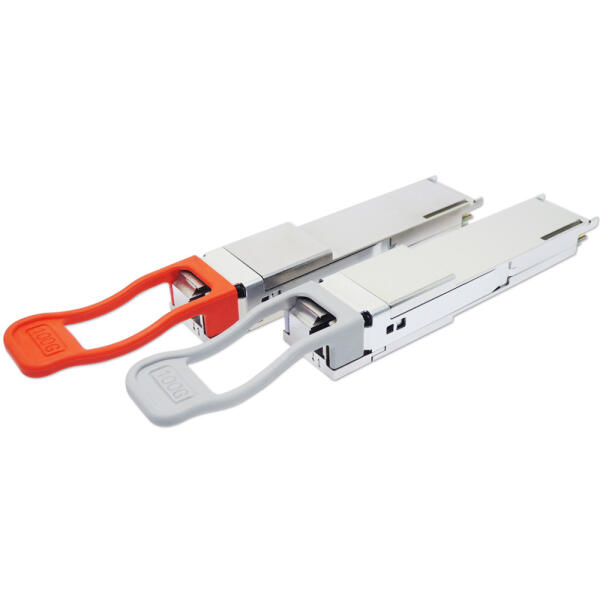

100G QSFP28 BIDI 4WDM-20 Transceiver
Hot Pluggable, BiDi LC, LAN-WDM DFB, Single Mode, 20KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQ28-K8-L12-20De | 100G | LWDM DFB | BiDi LC | SM 20km | -20~85°C | QSFP28-100G-BIDI-4WDM-20-Gray | |
| FQ28-K8-L13-20De | 100G | LWDM DFB | BiDi LC | SM 20km | -20~85°C | QSFP28-100G-BIDI-4WDM-20-Red | |
- 4WDM-20
- 100GBASE-LR4 Ethernet
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compatible with 4WDM-20 MSA
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- 8CH LWDM MUX / DEMUX design
- Data Rate 25.78125Gbps per Lane
- Built in quad TX CDR and RX CDR
- Hot Pluggable QSFP28 footprint
- O-Band LWDM DFB transmitter
- Simplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Operating Temperature -20~85°C
- Link distance 20km over SM fiber with RS-528 FEC
- Maximum Power consumption 5.5W
- RoHS compliant
