100G QSFP28
100G-QSFP28-LR4/LR4-20

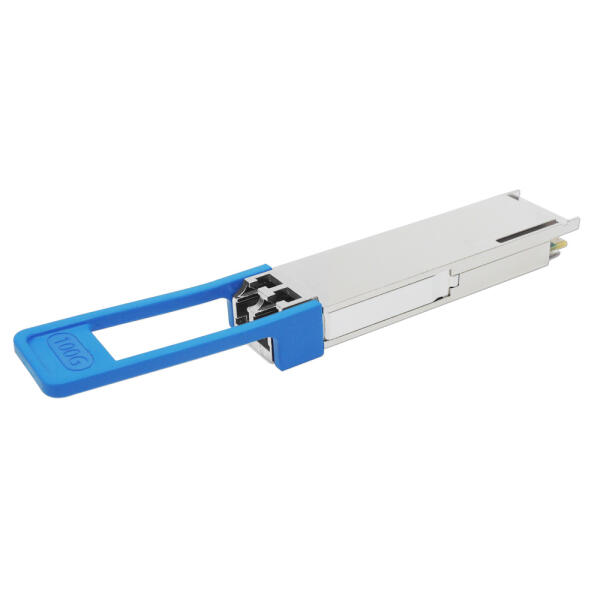

100G QSFP28 LR4/LR4-20 Transceiver
Hot Pluggable, Duplex LC, LAN-WDM DFB, Single Mode, 10KM~20KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQ28-K7-L13-10D | 100G | LWDM DFB | Duplex LC | SM 10km | 0~70°C | QSFP28-100G-LR4 Single-Rate COB, C-Temp | |
| FQ28-K7-L13-10Di | 100G | LWDM DFB | Duplex LC | SM 10km | -40~85°C | QSFP28-100G-LR4 Single-Rate COB, I-Temp | |
| FQ28-K7-L13-10DR | 100G | LWDM DFB | Duplex LC | SM 10km | 0~70°C | QSFP28-100G-LR4-Dual Rate | |
| FQ28-K7-L13-20D | 100G | LWDM DFB | Duplex LC | SM 20km | 0~70°C | QSFP28-100G-LR4 20km Single-Rate COB, C-Temp | |
| FQ28-K7-L13-20Di | 100G | LWDM DFB | Duplex LC | SM 20km | -40~85°C | QSFP28-100G-LR4 20km Single-Rate COB, I-Temp | |
- 100GBASE-LR4 Ethernet
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with IEEE 802.3ba 100GBASE-LR4
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- 4CH LWDM MUX / DEMUX design
- Data Rate 25.78125Gbps per Lane
- Built in quad Tx CDR and Rx CDR
- Hot Pluggable QSFP28 footprint
- O-Band LWDM DFB transmitter
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 10km~20km over SM fiber
- RoHS compliant
