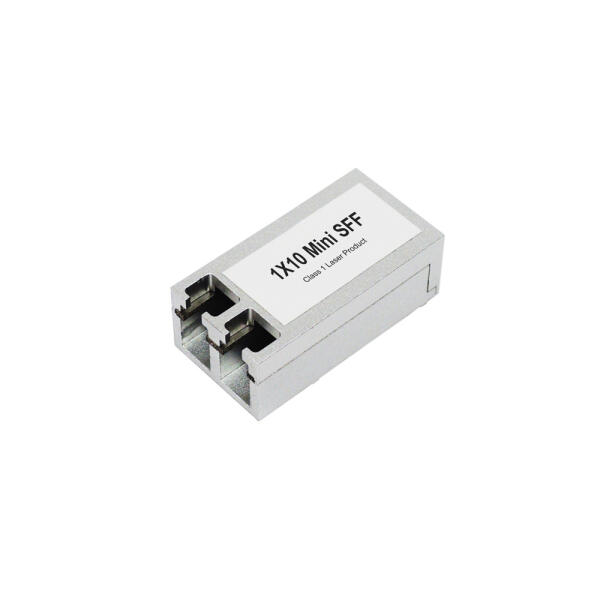

MiniSFF
10G-SR, LR
10GBASE-SR Mini SFF Transceiver
Hot Pluggable,Duplex LC, 850nm, Multi-Mode, OM3 300M
10GBASE-LR Mini SFF Transceiver
Hot Pluggable, Duplex LC,1310nm, Single Mode, 2km~20km
| Part Number | Data Rate | Wavelength | Connector | Distance | Data Output / Input | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|---|
| FSFM-H7-M85-X3D | 10G | 850nm | Duplex LC | OM3 300m | AC-coupled CML | 0~70°C | MiniSFF 1x10 10G-SR, C-Temp | |
| FSFM-H7-M85-X3Di | 10G | 850nm | Duplex LC | OM3 300m | AC-coupled CML | -40~85°C | MiniSFF 1x10 10G-SR, I-Temp | |
- 10GBASE-SR/SW Ethernet @10.3125G
- Fiber Channel 800-M5E-SN-I 8GFC @8.5G, 1200-M5E-SN-I 10GFC @10.51875G
- SONET OC-192 & SDH STM-64 @9.953G
- CPRI Option #7 @9.83G, #8 @10.1376G
- OTN OTU2 @10.7G, OTU2e @11.09G, OTU2f @11.32G
- Compliant with IEEE802.3ae 10GBASE-SR/SW
- Compliant with CPRI Option 7, 8
- 1x10 Mini SFF Footprint
- Aluminum alloy case; Screw mount
- Surface mount I/O pins for high-speed signal integrity
- 850nm VCSEL laser transmitter
- Duplex LC connector
- AC-coupled CML Differential inputs
- Single +3.3V power supply
- Link distance 300m over MM OM3 fiber and 400m over MM OM4 fiber
- Maximum Power consumption 0.9W
- RoHS Compliant
