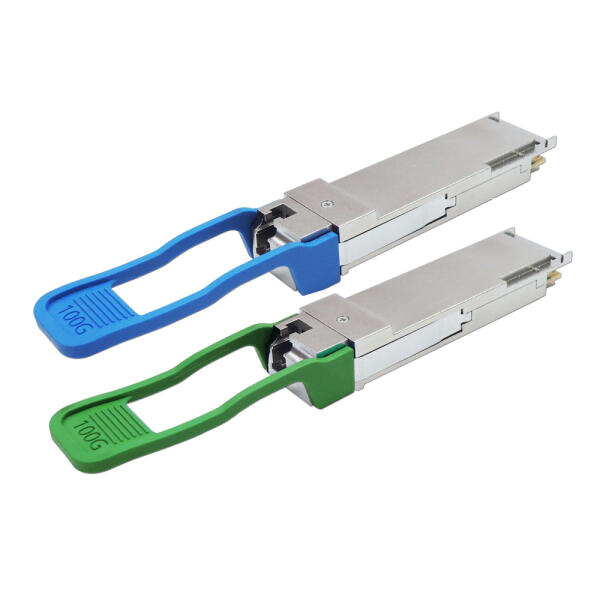

100G-QSFP28-BIDI-10/20 100G-QSFP28-BIDI-30/40
100G-QSFP28-BIDI-10/20 100G-QSFP28-BIDI-30/40

100G-QSFP28-BIDI-10/20/30/40

100G QSFP28 Single Lambda LR1 / ER1-BiDi Transceiver
Hot Pluggable, BiDi LC, 1271nm / 1291nm / 1331nm / 1311nm / 1304nm / 1309nm, SMF 10KM~40KM


Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
FQ2S-K8-C27-10D100GTx1271nm EML / Rx1331nmBiDi LCSM 10km0~70°CQSFP28-100G-BX10-27
FQ2S-K8-C33-10D100GTx1331nm EML / Rx1270nmBiDi LCSM 10km0~70°CQSFP28-100G-BX10-33
FQ2S-K8-C27-20D100GTx1271nm EML / Rx1331nmBiDi LCSM 20km0~70°CQSFP28-100G-BX20-27
FQ2S-K8-C33-20D100GTx1331nm EML / Rx1270nmBiDi LCSM 20km0~70°CQSFP28-100G-BX20-33
FQ2S-K8-L04-30D100GTx1304nm EML / Rx1309nmBiDi LCSM 30km0~70°CQSFP28-100G-BX30-1304
FQ2S-K8-L09-30D100GTx1309nm EML / Rx1304nmBiDi LCSM 30km0~70°CQSFP28-100G-BX30-1309
FQ2S-K8-L04-40D100GTx1304nm EML / Rx1309nmBiDi LCSM 40km0~70°CQSFP28-100G-BX40-1304
FQ2S-K8-L09-40D100GTx1309nm EML / Rx1304nmBiDi LCSM 40km0~70°CQSFP28-100G-BX40-1309
FQ2S-K8-L04-40De100GTx1304nm EML / Rx1309nmBiDi LCSM 40km-10~75°CQSFP28-100G-BX40-1304, E-Temp
FQ2S-K8-L09-40De100GTx1309nm EML / Rx1304nmBiDi LCSM 40km-10~75°CQSFP28-100G-BX40-1309, E-Temp

  • 100GBASE Ethernet
  • Data Centers Switch Interconnect
  • Server and Storage Area Network Interconnect

  • Compliant with SFF-8665 QSFP28 MSA
  • Compliant with IEEE 802.3bm CAUI-4 Interface
  • Signal Conversion between 53.125GBd PAM4 optical signal and 25.78125Gbps NRZ electrical signal with DSP Gear Box
  • Built in Tx CDR and Rx CDR
  • Inbuild KP4 FEC
  • Hot Pluggable QSFP28 footprint
  • 1271nm / 1291nm / 1331nm / 1311nm / 1304nm / 1309nm transmitter
  • Simplex LC connector
  • 2-wire interface for management and diagnostic monitor compliant with SFF-8636
  • Single 3.3V power supply
  • Link distance 10km~40km over SM fiber with FEC
  • Maximum Power consumption 4.5W
  • RoHS compliant
