40G QSFP+
40G QSFP+ ER4

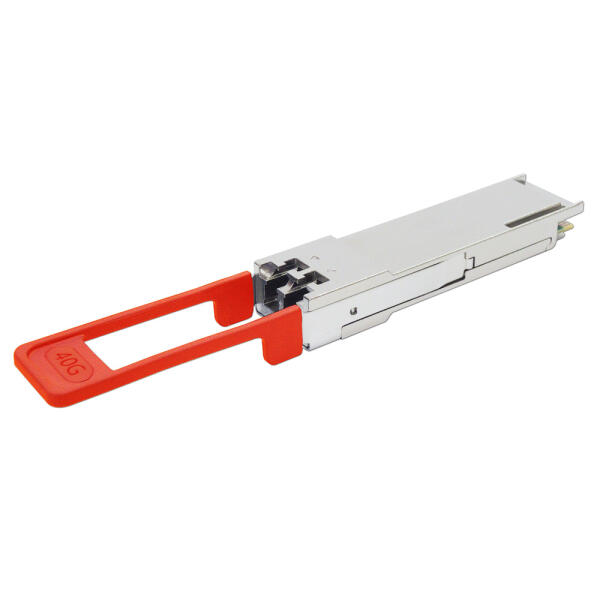

40G QSFP+ ER4 Transceiver
Hot Pluggable, Duplex LC, CWDM DFB, Single Mode, 40KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQFP-I7-C13-40D | 40G | CWDM DFB | Duplex LC | SM 40km | 0~70°C | QSFP+ 40G-ER4, C-Temp | |
| FQFP-I7-C13-40Di | 40G | CWDM DFB | Duplex LC | SM 40km | -40~85°C | QSFP+ 40G-ER4, I-Temp | |
- 40GBASE-ER4 Ethernett
- OTN OTU3 @43.01G, OTU3e2 @44.58Gt
- Data Centers Switch Interconnectt
- Server and Storage Area Network Interconnect
- Compatible with IEEE802.3bm 40GBASE-ER4
- Compliant to SFF-8436 QSFP+ MSA
- Supports QDR / DDR InfiniBand
- 4CH CWDM MUX / DEMUX design
- Data Rate up to 11.2Gbps per Lane
- Hot Pluggable
- CWDM DFB transmitter
- APD receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single 3.3V power supply
- Link distance 40km over SM fiber
- Maximum Power consumption 4.5W
- RoHS compliant
