SFP+

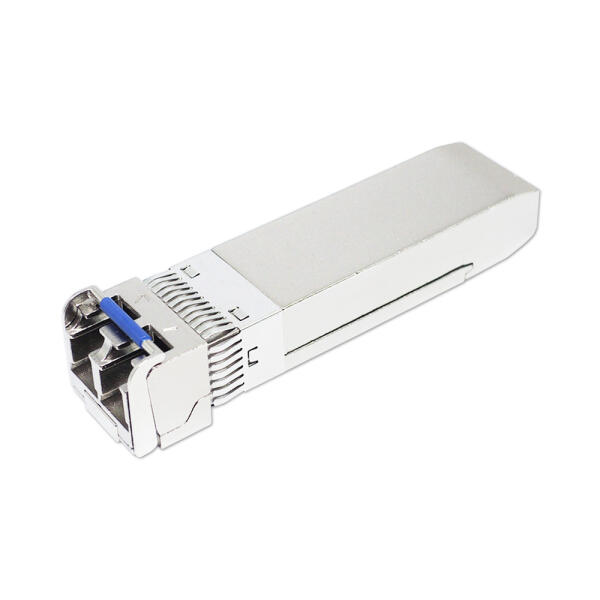

8GFC SFP+ Duplex
8GFC SFP+ Duplex

8GFC SFP+ Duplex

8GFC SFP+ SW Transceiver
Hot Pluggable, Duplex LC, 850nm, Multi-Mode, OM3 150M



8GFC / 4GFC / 2GFC SFP+ ELR Transceiver
Hot Pluggable, Duplex LC, 1310nm, Single Mode, 30KM


Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
FSPP-87-M85-X1D8G850nmDuplex LCOM3 150m0~70°CSFP+8GFC-SW
FSPP-87-M85-X1Di8G850nmDuplex LCOM3 150m-40~85°CSFP+8GFC-SW, I-Temp
FSPP-87-S13-30DM8G1310nmDuplex LCSM 30km0~70°CSFP+8GFC-ELR, Multi-Rate
FSPP-87-S13-30DMi8G1310nmDuplex LCSM 30km-40~85°CSFP+8GFC-ELR, Multi-Rate, I-Temp

  • Fiber Channel FC-PI-4 800-M5E-SN-I 8GFC,
    800-M5-SN-S, 800-M6-SN-S @8.5G ( SFP+8GFC-SW )
  • Fiber Channel 800-SM-LC-L 8GFC @8.5G,
    400-SM-LC-L 4GFC @4.25G,
    200-SM-LC-L 2GFC @2.125G

  • Compliant with Fiber Channel 8GFC FC-PI-4 800-M5-SN-S, 800-M6-SN-S and 800-M5E-SN-I ( SFP+8GFC-SW )
  • Data Rate 8.5Gb/s ( SFP+8GFC-SW )
  • Compliant with SFF-8431, SFF-8432 SFP+ MSA
  • Support 2.125 / 4.25 / 8.5Gb/s Multi-Rate
  • Hot Pluggable
  • 850nm VCSEL / 1310nm DFB laser transmitter
  • Duplex LC connector
  • 2-wire interface for management and diagnostic monitor compliant with SFF-8472
  • Single +3.3V power supply
  • Link distance 21m over MM OM1 fiber, 50m over MM OM2 fiber and 150m over MM OM3 fiber ( SFP+8GFC-SW )
  • Link distance 30km over SM fiber
  • RoHS Compliant
